1586024-4 | AMP

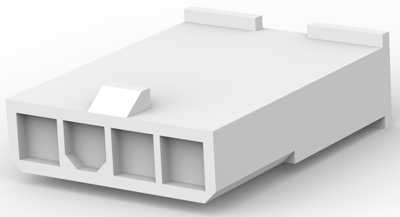

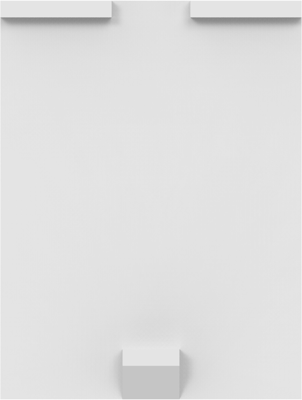

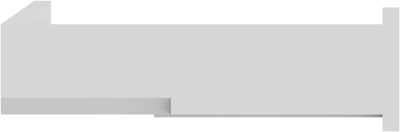

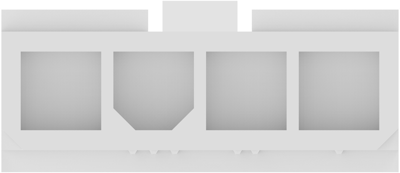

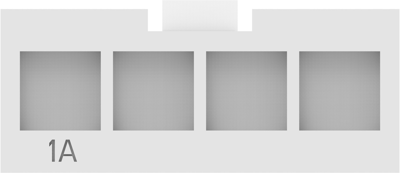

Plug housing, 4 pole, pitch 4.2 mm, straight, natural, 1586024-4
Unit Price (€ / pc.)
0.3094 € *
Available: 1,750 pcs.
Available in 5 Days: 4,518 pcs.
Leadtime: 20 Weeks **
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3094 €
10 pcs.
0.2737 €
50 pcs.
0.2416 €
100 pcs.
0.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.
4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.
Male connector housings, single-row, bare, type 0-158.
Technical attributes (type, number of poles, dimension A): 0-1586024-4, 4-pole, A 18 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Nennspannung | 600 V | |
| Nennstrom | 9 A | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 4.2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | BE |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
