1586039-2 | AMP

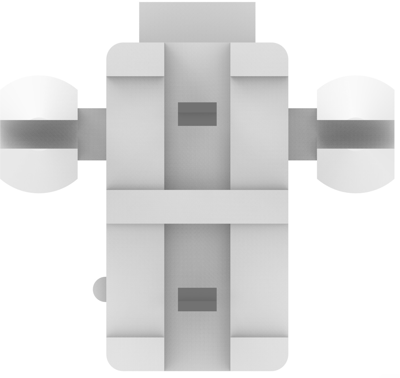

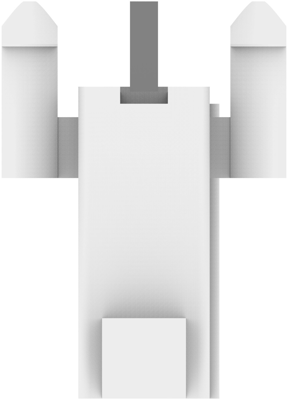

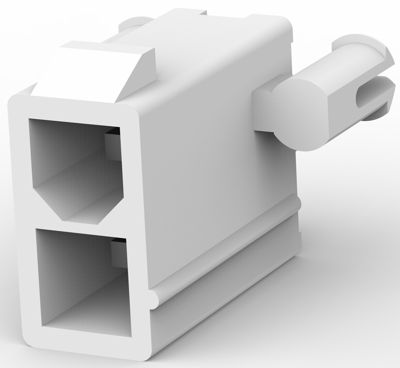

Pin header, 2 pole, pitch 4.2 mm, straight, natural, 1586039-2
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Available in 5 Days: 1,091 pcs.
Leadtime: 20 Weeks **
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
350 pcs.
0.3094 €
1600 pcs.
0.3070 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1586039-2, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: natural
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 9 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 4.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | BR |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
