1586532-2 | AMP

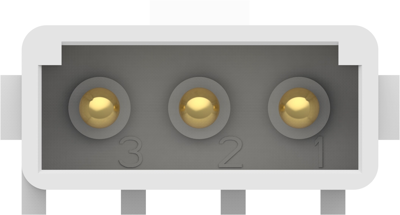

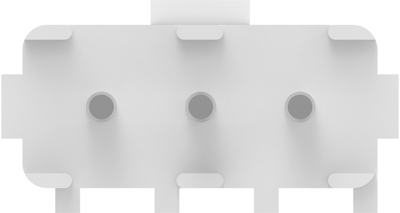

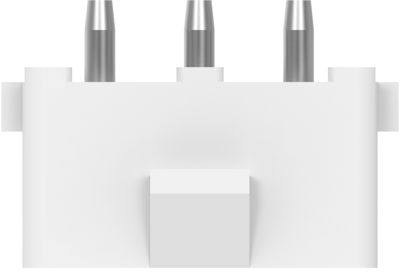

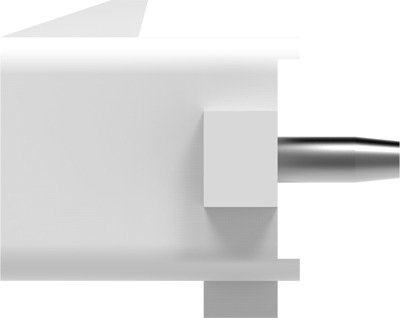

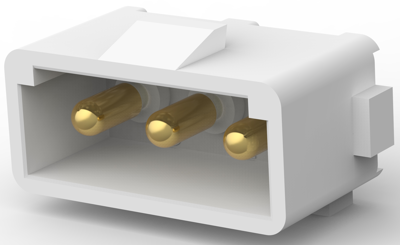

Pin header, 3 pole, pitch 5.08 mm, straight, natural, 1586532-2
Unit Price (€ / pc.)
2.2967 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 1586532-2, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 150 V | |
| Nennstrom | 12 A | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Rastermaß | 5.08 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
