1604398-4 | AMP

Plug/Socket connector, 2 pole, straight, red, 1604398-4

Order No.: 71P2546
EAN: 4099891721329
MPN:
1604398-4
AMP

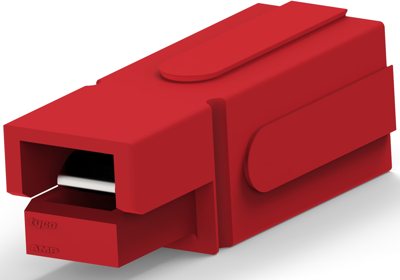

1604398-4 AMP PCB Connection Systems Image 1

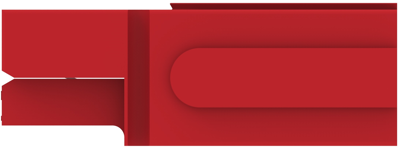

1604398-4 AMP PCB Connection Systems Image 2

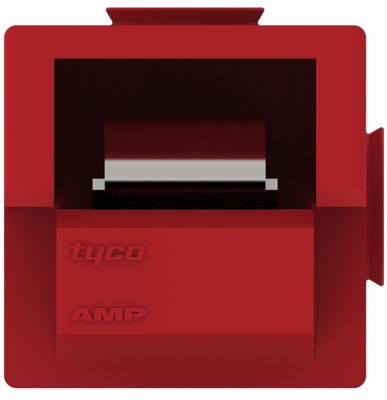

1604398-4 AMP PCB Connection Systems Image 3

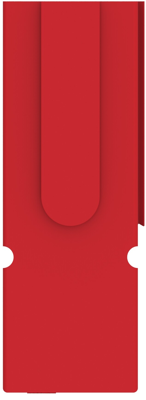

1604398-4 AMP PCB Connection Systems Image 4
1604398-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
21.1820 € *
Available: 0 pcs.
Available in 5 Days: 78 pcs.
Leadtime: 23 Weeks **
Total Price:
21.18 € *
Price list
Quantity
Price per unit*
5 pcs.
21.1820 €
21 pcs.
19.9563 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power connector, 1604398-4, AMP

The 1604398-4 is a power connector built in interlocking feature allowing stacking and wire routing.

Features

  • Genderless housings reduce inventory
  • Integral stainless steel locking spring in housing for contact retention
  • Reducing bushings down to 10 gauge
Technical specifications
Connection crimp connection
Connection plating silver-plated
Number of rows 1
Version Plug/Socket connector
Colour red
Contact type pin
contact surface silver-plated
Rated voltage 600 V
Rated current 180 A
Orientation straight
Pin number 2 pole
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
