1658526-5 | AMP

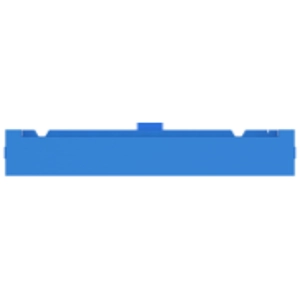

Socket header, 10 pole, pitch 2.54 mm, straight, blue, 1658526-5
Unit Price (€ / pc.)
9.1511 € *
Available: 85 pcs.
Leadtime: 11 Weeks **
Total Price:
9.15 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1511 €
10 pcs.
8.5085 €
50 pcs.
7.8302 €
100 pcs.
7.1162 €
*incl. VAT plus shipping costs
**Subject to prior sale
Insulation displacement connectors, premium series, type TE Connectivity/Ansley ..-0165../..-176.
Ribbon cable connector, patented tubular contacts with 2.54 x 2.54 mm grid; Housing: glass-fiber-reinforced thermoplastic to 94 V-0. Color: blue. Contacts: beryllium copper gold-plated on nickel primer in the connecting area, in the mating area tinned on nickel primer. Operating current: 1.0 A. Dielectric strength: 500 V. Operating temperatures: –55 to +125 °C. Certifications: UL, CSA
Female connectors, type ..-165.
With center polarity mechanism and strain relief.

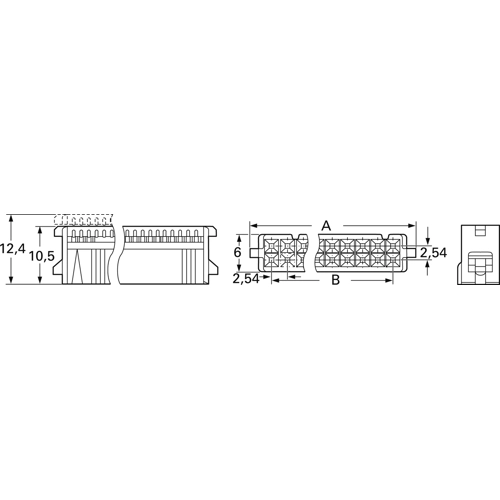

Type: 0–1658526–5, 10–pole, A 17.17, B 10.16 mm
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | blau | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 150 V | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 10-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
