1658526-9 | AMP

Socket header, 14 pole, pitch 2.54 mm, straight, blue, 1658526-9

Order No.: 56F6352
EAN: 4099891001308
MPN:
1658526-9
609-1441LF
Series: AMP-LATCH

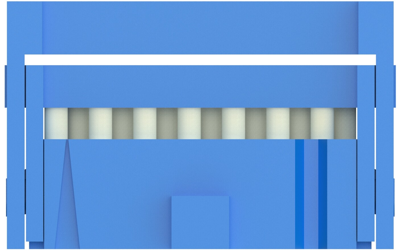

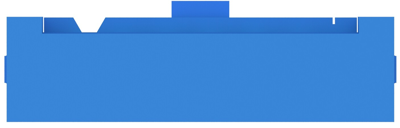

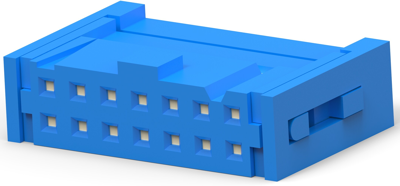

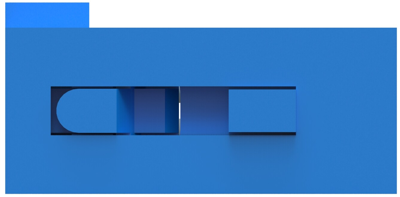

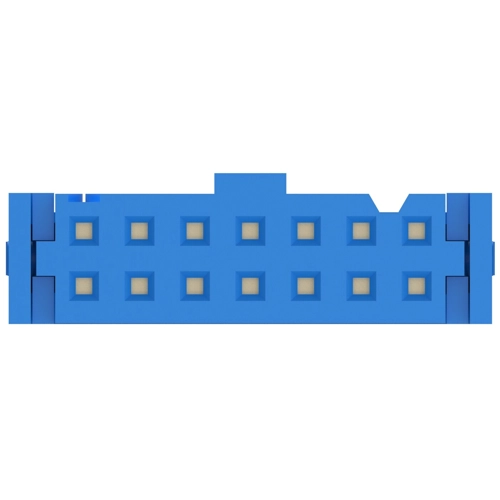

1658526-9 AMP PCB Connection Systems Image 1
1658526-9 AMP PCB Connection Systems Image 2
1658526-9 AMP PCB Connection Systems Image 3
1658526-9 AMP PCB Connection Systems Image 4
1658526-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
10.5196 € *
Available: 10 pcs.
Available in 5 Days: 894 pcs.
Leadtime: 12 Weeks **
Total Price:
10.52 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5196 €
10 pcs.
9.6747 €
50 pcs.
8.8060 €
100 pcs.
7.9254 €
*incl. VAT plus shipping costs
**Subject to prior sale

Insulation displacement connectors, premium series, type TE Connectivity/Ansley ..-0165../..-176.

Ribbon cable connector, patented tubular contacts with 2.54 x 2.54 mm grid; Housing: glass-fiber-reinforced thermoplastic to 94 V-0. Color: blue. Contacts: beryllium copper gold-plated on nickel primer in the connecting area, in the mating area tinned on nickel primer. Operating current: 1.0 A. Dielectric strength: 500 V. Operating temperatures: –55 to +125 °C. Certifications: UL, CSA

Female connectors, type ..-165.

With center polarity mechanism and strain relief.

Type: 0–1658526–9, 14–pole, A 22.25, B 15.24 mm

Technical specifications
Connection Schneidklemmanschluss
Connection plating verzinnt
Number of rows 2
Version Buchsenleiste
Additional parts bestückt
Colour blau
Contact type Buchse
contact surface vergoldet
Rated voltage 150 V
Rated current 1 A
Orientation gerade
Pin number 14-polig
Grid 2.54 mm
Logistics
Country of origin GB
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
