1658621-9 | AMP

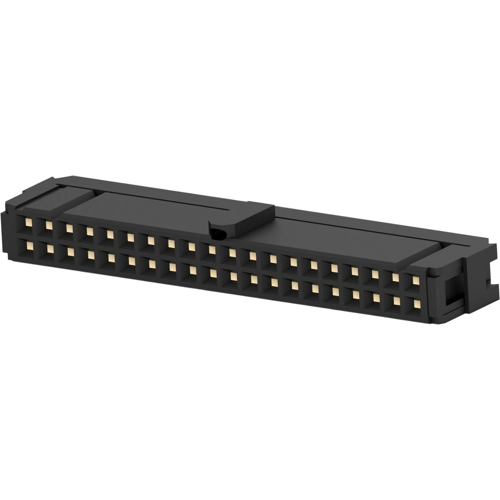

Socket housing, 40 pole, pitch 2.54 mm, straight, black, 1658621-9

Order No.: 36P5473
EAN: 4099889943610
MPN:
1658621-9
Series: AMP-LATCH
1658621-9 AMP PCB Connection Systems Image 1
1658621-9 AMP PCB Connection Systems Image 2
1658621-9 AMP PCB Connection Systems Image 3
1658621-9 AMP PCB Connection Systems Image 4
1658621-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.0107 € *
Available: 179 pcs.
Available in 5 Days: 5,091 pcs.
Leadtime: 12 Weeks **
Total Price:
3.01 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0107 €
10 pcs.
2.7727 €
50 pcs.
2.5228 €
100 pcs.
2.2729 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1658621-9, AMP

Wire-to-Board, Wire & Cable, Vertical, 40 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 40
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche vergoldet
Anzahl der Reihen 2
Ausführung Buchsengehäuse
Bestückung bestückt
Farbe schwarz
Kontaktart Buchse
Kontaktoberfläche vergoldet
Nennspannung 150 V
Nennstrom 1 A
Orientierung gerade
Polzahl 40-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
