1658622-2 | AMP

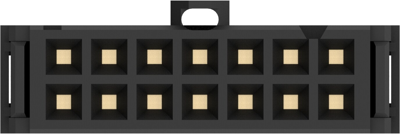

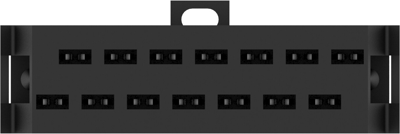

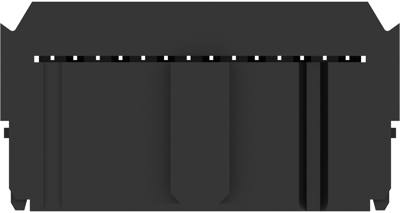

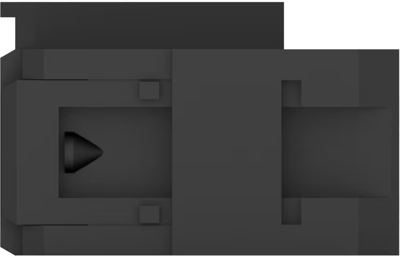

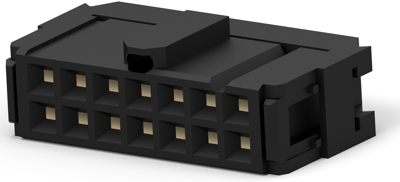

Socket header, 14 pole, pitch 2.54 mm, straight, black, 1658622-2
Unit Price (€ / pc.)
2.2134 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
PCB Connection System, 1658622-2, AMP
Wire-to-Board, Wire & Cable, Vertical, 14 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 14
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | vergoldet | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 150 V | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 14-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
