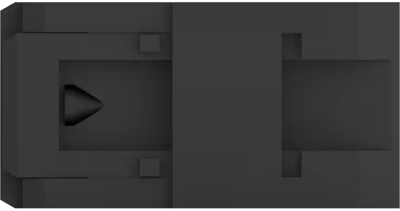

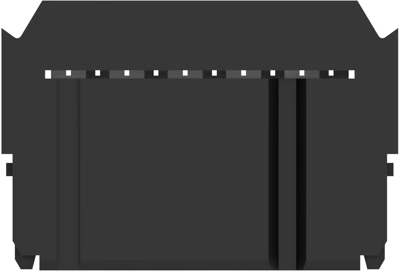

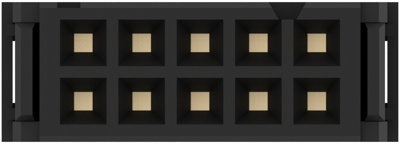

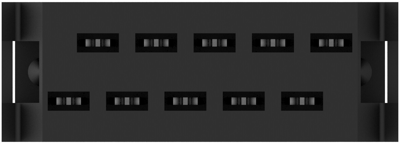

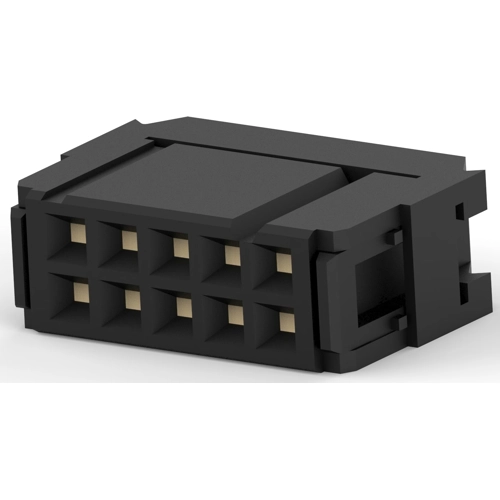

1658623-1 | AMP
Socket header, 10 pole, pitch 2.54 mm, straight, black, 1658623-1
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6303 €
50 pcs.
1.4637 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1658623-1, AMP
Wire-to-Board, Wire & Cable, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
