171826-2 | AMP

Pin header, 2 pole, pitch 2.5 mm, angled, natural, 171826-2

Order No.: 37P1125
EAN: 4099889951950
MPN:
171826-2

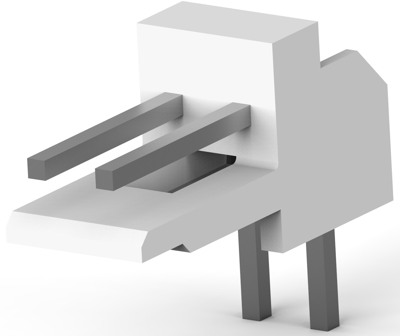

171826-2 AMP PCB Connection Systems Image 1

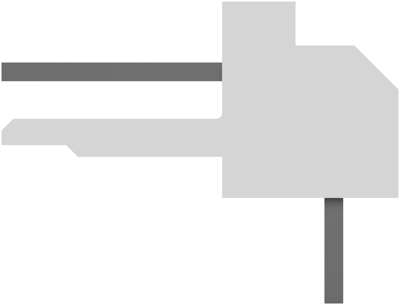

171826-2 AMP PCB Connection Systems Image 2

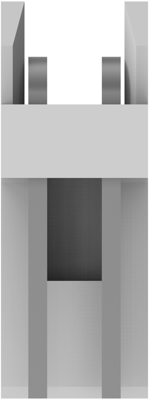

171826-2 AMP PCB Connection Systems Image 3

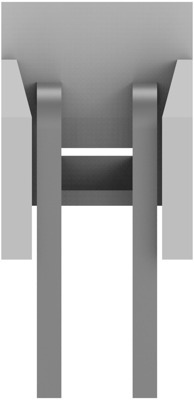

171826-2 AMP PCB Connection Systems Image 4

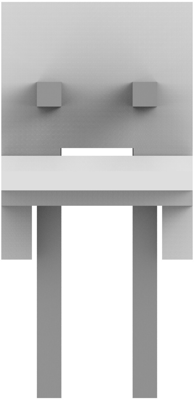

171826-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Available in 5 Days: 92,041 pcs.
Leadtime: 11 Weeks **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 171826-2, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Horizontal, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: 6/6 Nylon
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 2
  • Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
  • Rated current: 3.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche vernickelt
Nennspannung 150 V
Nennstrom 3.5 A
Orientierung abgewinkelt
Polzahl 2-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
