171826-3 | AMP

Pin header, 3 pole, pitch 2.5 mm, angled, natural, 171826-3

Order No.: 37P1126
EAN: 4099889951967
MPN:
171826-3

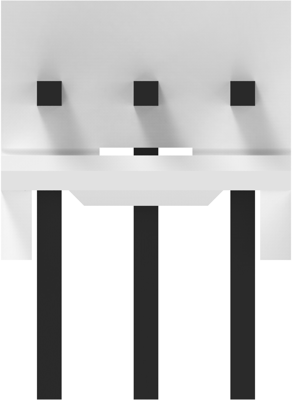

171826-3 AMP PCB Connection Systems Image 1

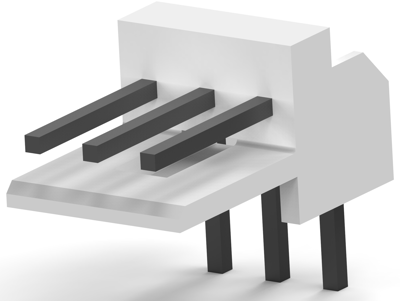

171826-3 AMP PCB Connection Systems Image 2

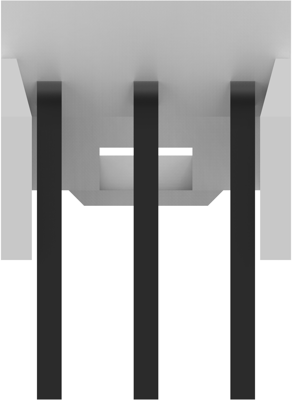

171826-3 AMP PCB Connection Systems Image 3

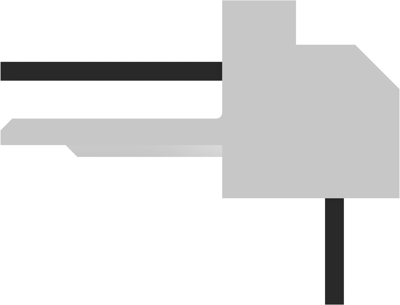

171826-3 AMP PCB Connection Systems Image 4

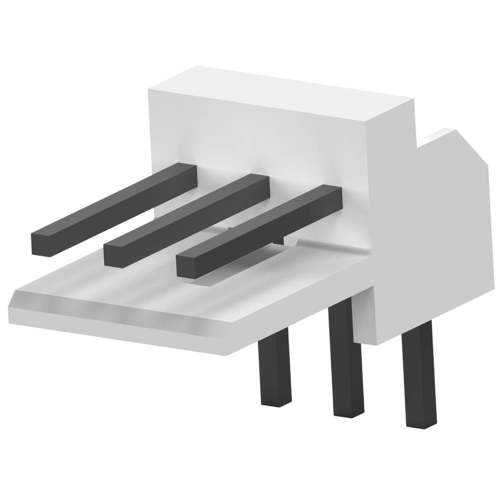

171826-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5950 € *
Available: 0 pcs.
Available in 5 Days: 90,678 pcs.
Leadtime: 11 Weeks **
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5236 €
50 pcs.
0.4760 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 171826-3, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Horizontal, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: 6/6 Nylon
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 3
  • Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 5 A
Orientierung abgewinkelt
Polzahl 3-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
