171826-6 | AMP

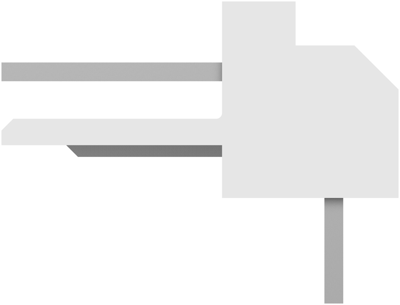

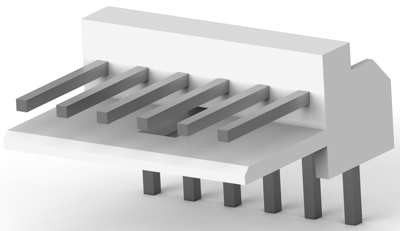

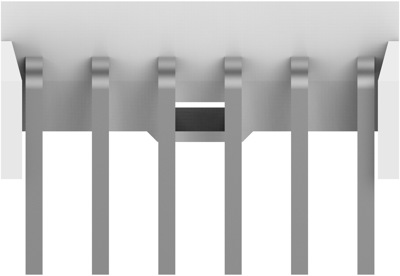

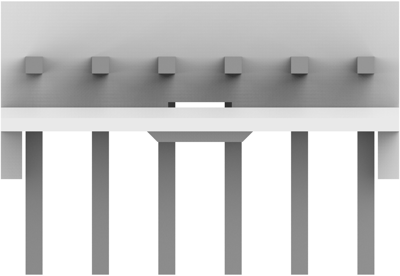

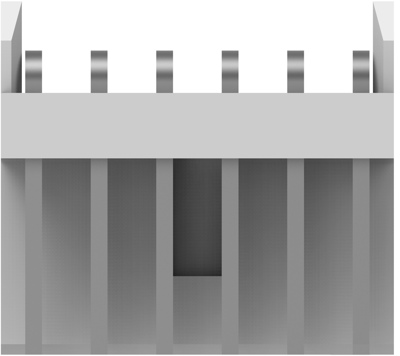

Pin header, 6 pole, pitch 2.5 mm, angled, natural, 171826-6
Order No.: 37P1148
EAN: 4099889952056
MPN:
171826-6
Unit Price (€ / pc.)
0.6188 € *
Available: 0 pcs.
Available in 5 Days: 62,099 pcs.
Leadtime: 11 Weeks **
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5474 €
50 pcs.
0.4879 €
100 pcs.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 171826-6, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Horizontal, 6 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: 6/6 Nylon
- Housing Color: natural
- Orientation: angled
- Number of positions: 6
- Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
- Rated current: 3.5 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 6-polig | |
| Grid | 2.5 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | abgewinkelt | |
| Type of locking | Ja | |
| contact surface | vernickelt | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 3.5 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
