172158-1 | AMP

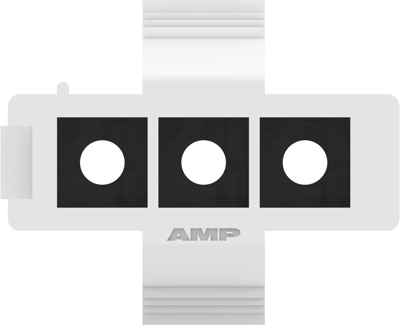

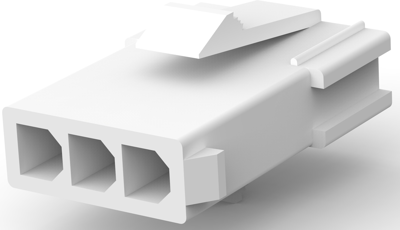

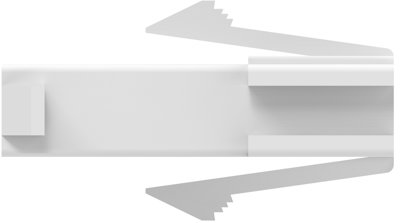

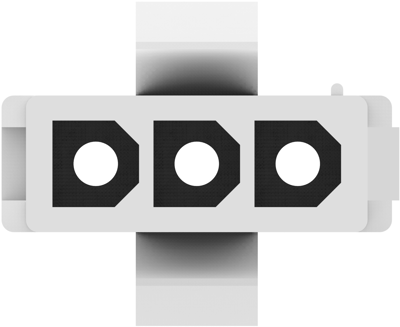

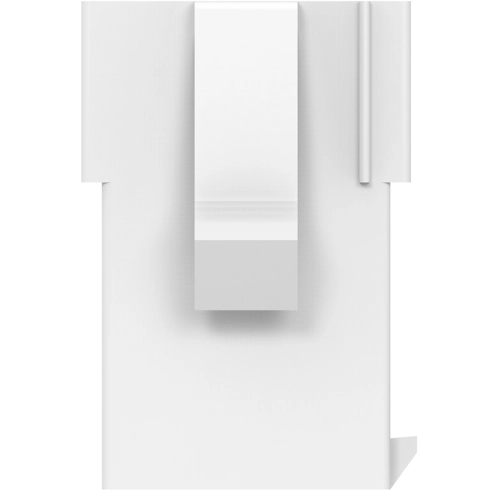

Socket housing, 3 pole, pitch 4.14 mm, straight, natural, 172158-1
Unit Price (€ / pc.)
0.6307 € *
Available: 206 pcs.
Next delivery: 1,000 pcs. on 2025-04-02
Leadtime: 23 Weeks **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
100 pcs.
0.5712 €
400 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable connectors, bare, 1 to 15 poles, series Mini-Universal-Mate-N-Lok, type TE Connectivity/AMP 0-017.
Made of polyamide 6.6, plain-colored, compliant with UL 94 V-0; Housing: polarized and lockable in the cut-out. With plug/receptacle housing for mixed assembly. Contact pitch: 4.2 mm. Current rating: max. 5.0 A. Operating voltage: 300 VAC. Operating temperatures: –20 to +95 °C. The crimp snap-in contacts are described below.
Receptacle housing, interlocking with connector housing, type 0-017.
Type: 0-0172158-1, 3-pole
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Farbe | natur | |
| Kontaktart | Buchse/Stift | |
| Nennspannung | 600 V | |
| Nennstrom | 9.5 A | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Rastermaß | 4.14 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
