172211-3 | AMP

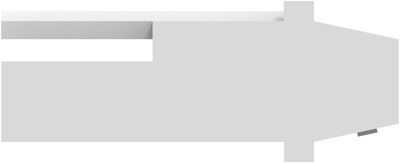

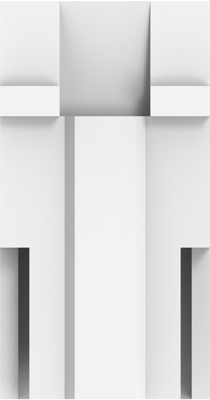

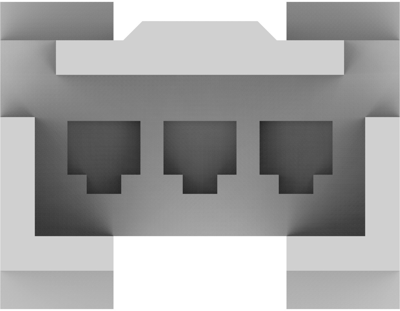

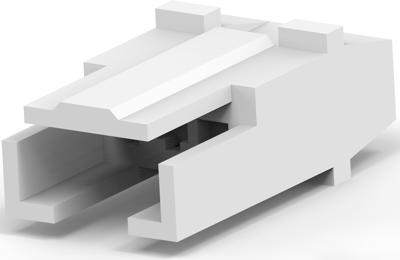

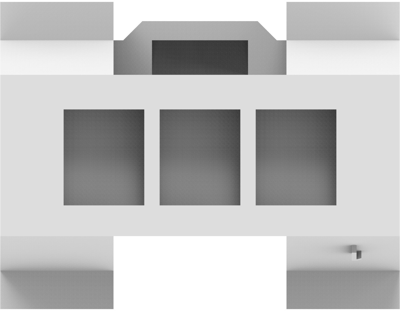

Plug housing, 3 pole, pitch 2.5 mm, straight, natural, 172211-3
Order No.: 37P1196
EAN: 4099889952216
MPN:
172211-3
Unit Price (€ / pc.)
0.1297 € *
Available: 0 pcs.
Available in 5 Days: 55,884 pcs.
Leadtime: 10 Weeks **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
700 pcs.
0.1297 €
3600 pcs.
0.1214 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 172211-3, AMP
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
- Insulation Resistance: 500 MΩ
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | pin | |
| Rated voltage | 150 V | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Melamine |
