176275-9 | AMP

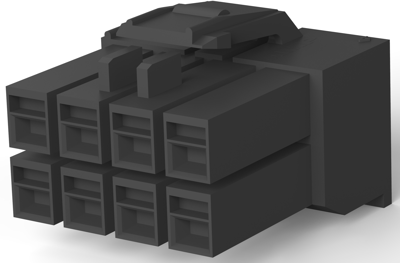

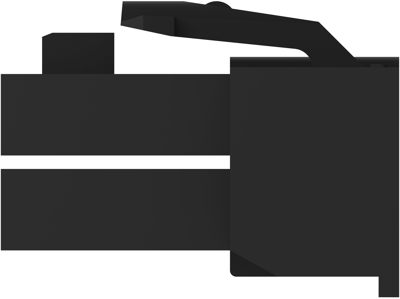

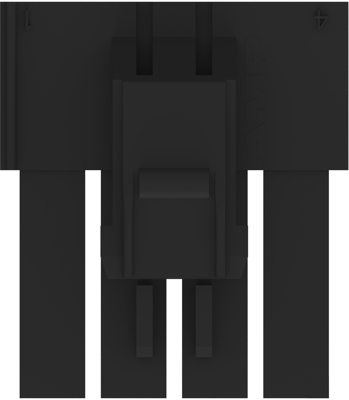

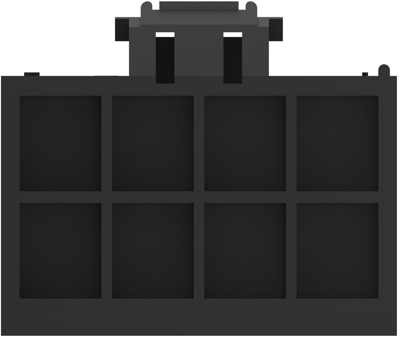

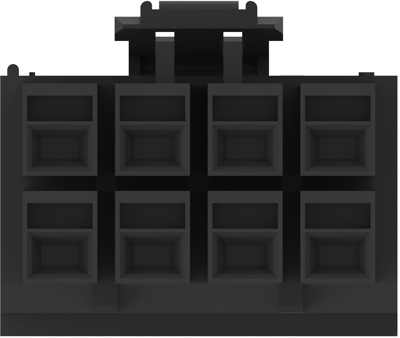

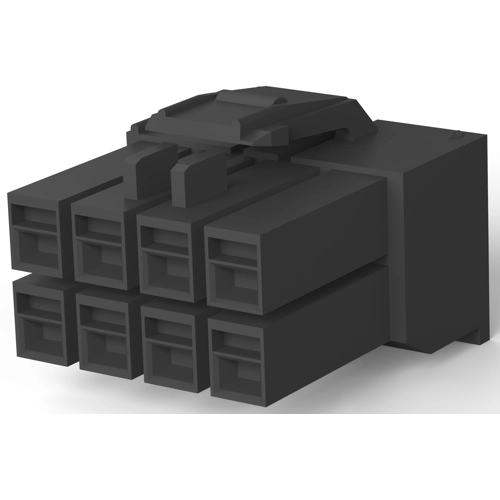

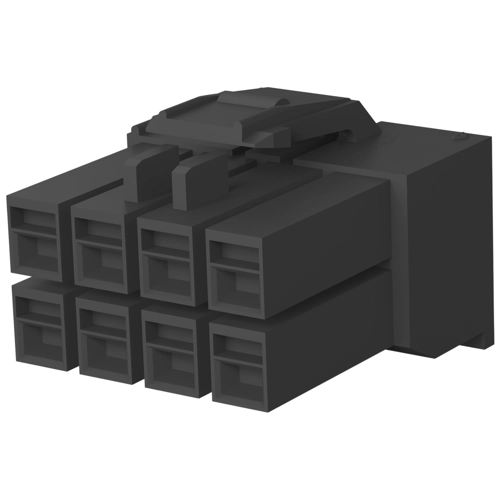

Socket header, 8 pole, pitch 3.96 mm, straight, black, 176275-9
Order No.: 34P6244
EAN: 4099889911497
MPN:
176275-9
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 32 Weeks **
PCB Connection System, 176275-9, AMP
Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 3.96 mm
- Row-to-Row Spacing: 4.6 mm [0.181 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 150 V | |
| Rated current | 7 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
