176280-1 | AMP

Plug housing, 18 pole, pitch 3.96 mm, straight, natural, 176280-1

Order No.: 34P6240
EAN: 4099889911459
MPN:
176280-1

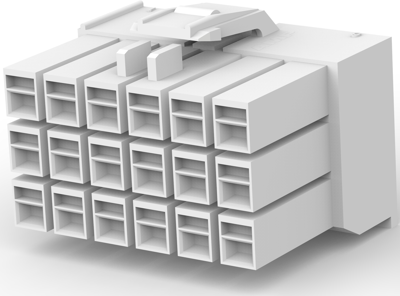

176280-1 AMP PCB Connection Systems Image 1

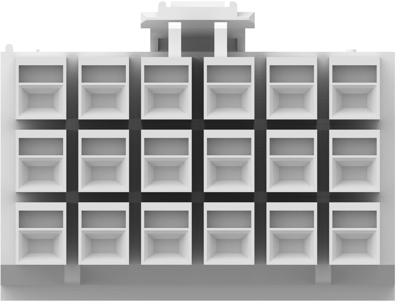

176280-1 AMP PCB Connection Systems Image 2

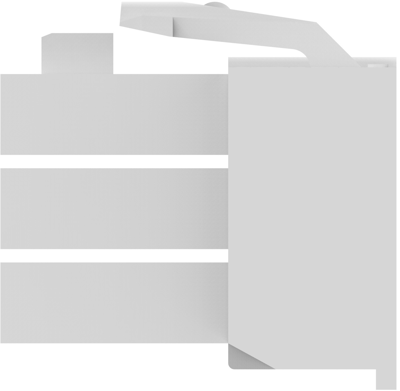

176280-1 AMP PCB Connection Systems Image 3

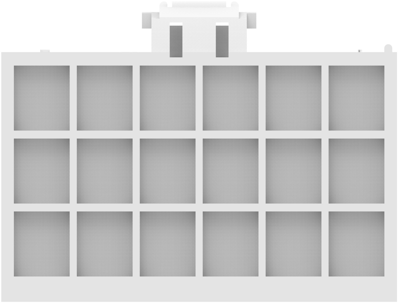

176280-1 AMP PCB Connection Systems Image 4

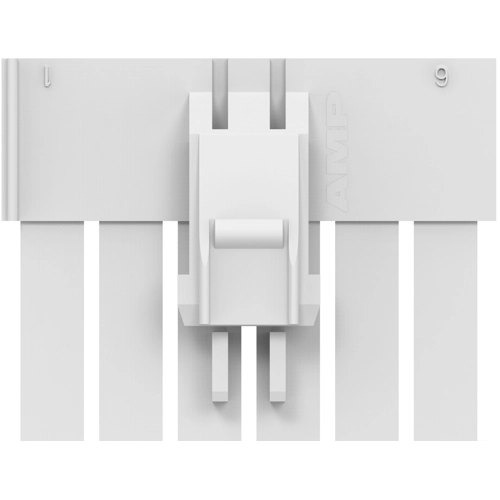

176280-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4998 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
999.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.4998 €

PCB Connection System, 176280-1, AMP

Wire-to-Wire, Wire & Cable, 18 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 18
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Connection crimp connection
Number of rows 3
Version plug housing
Additional parts unequipped
Colour natural
Contact type socket
Rated voltage 150 V
Rated current 7 A
Orientation straight
Pin number 18 pole
Grid 3.96 mm
Type of locking Yes
Logistics
Country of origin TH
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
