176280-9 | AMP

Plug housing, 18 pole, pitch 3.96 mm, straight, black, 176280-9

Order No.: 34P6241
EAN: 4099889911466
MPN:
176280-9

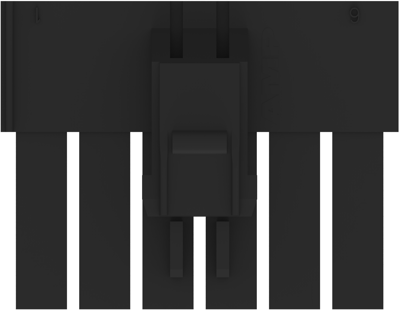

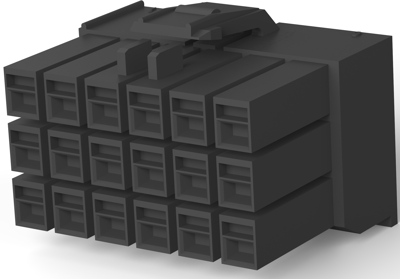

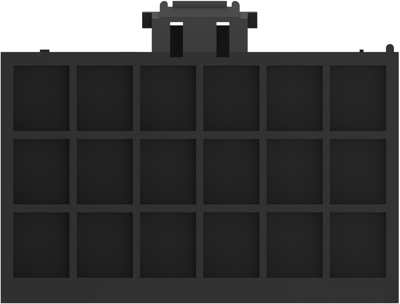

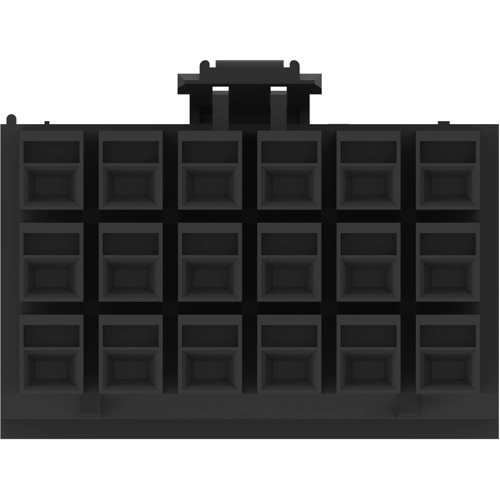

176280-9 AMP PCB Connection Systems Image 1
176280-9 AMP PCB Connection Systems Image 2
176280-9 AMP PCB Connection Systems Image 3
176280-9 AMP PCB Connection Systems Image 4
176280-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Available: 0 pcs.
Available in 5 Days: 1,705 pcs.
Leadtime: 24 Weeks **
Total Price:
1.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.0829 €

PCB Connection System, 176280-9, AMP

Wire-to-Wire, Wire & Cable, 18 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6
  • Housing Color: black
  • Number of positions: 18
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 3
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe schwarz
Kontaktart Buchse
Nennspannung 150 V
Nennstrom 7 A
Orientierung gerade
Polzahl 18-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
