176289-1 | AMP

Socket housing, 12 pole, pitch 3.96 mm, straight, natural, 176289-1

Order No.: 34P6223
EAN: 4099889911305
MPN:
176289-1

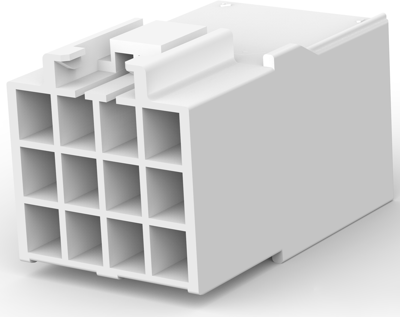

176289-1 AMP PCB Connection Systems Image 1

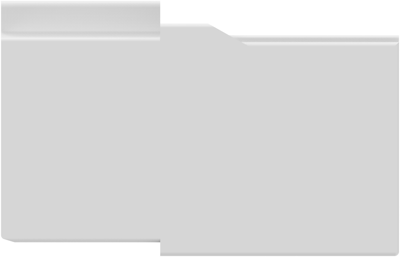

176289-1 AMP PCB Connection Systems Image 2

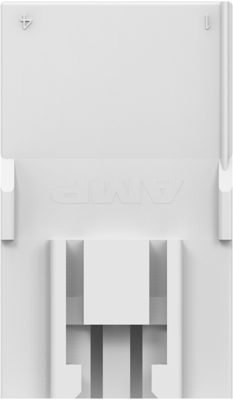

176289-1 AMP PCB Connection Systems Image 3

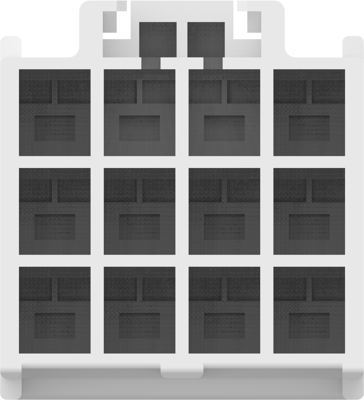

176289-1 AMP PCB Connection Systems Image 4

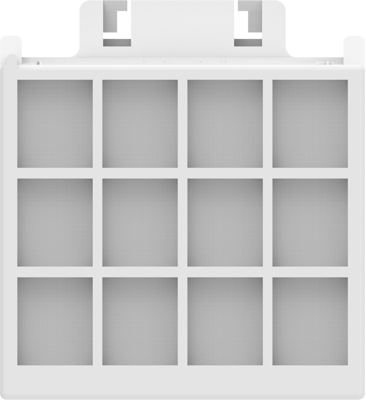

176289-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.3915 € *
Available: 0 pcs.
Available in 5 Days: 246 pcs.
Leadtime: 24 Weeks **
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.1297 €
50 pcs.
2.8084 €
100 pcs.
2.5347 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 176289-1, AMP

Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 3
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Tab
Nennspannung 150 V
Nennstrom 7 A
Orientierung gerade
Polzahl 12-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
