176298-1 | AMP

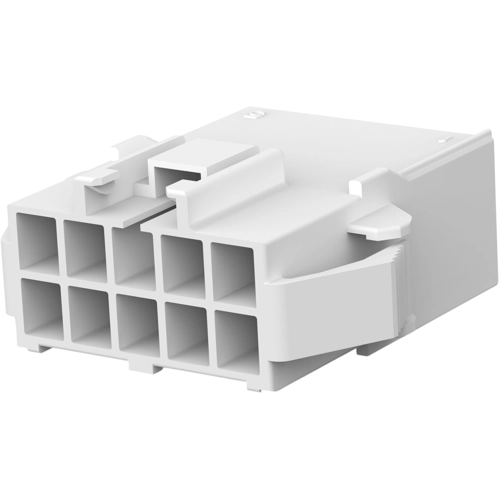

Socket housing, 10 pole, pitch 3.96 mm, straight, natural, 176298-1

Order No.: 34P6245
EAN: 4099889911503
MPN:
176298-1

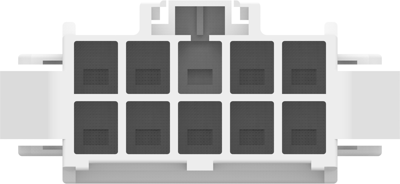

176298-1 AMP PCB Connection Systems Image 1

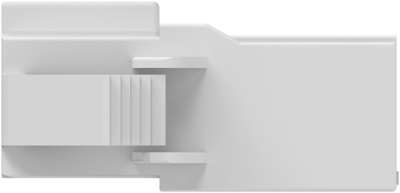

176298-1 AMP PCB Connection Systems Image 2

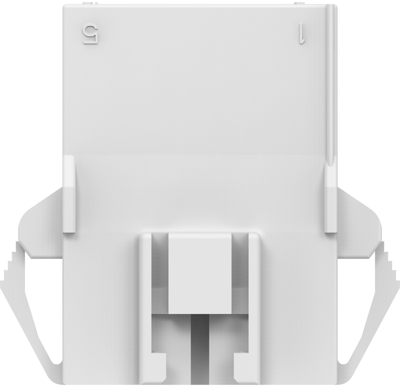

176298-1 AMP PCB Connection Systems Image 3

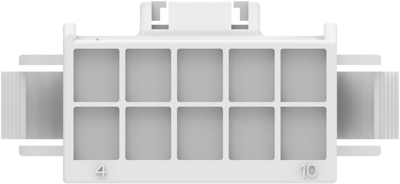

176298-1 AMP PCB Connection Systems Image 4

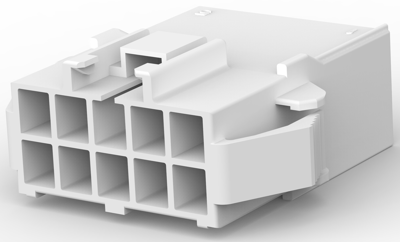

176298-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
2,308.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
1.1543 €

PCB Connection System, 176298-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsengehäuse
Farbe natur
Kontaktart Tab
Nennspannung 150 V
Nennstrom 7 A
Orientierung gerade
Polzahl 10-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
