177898-2 | AMP

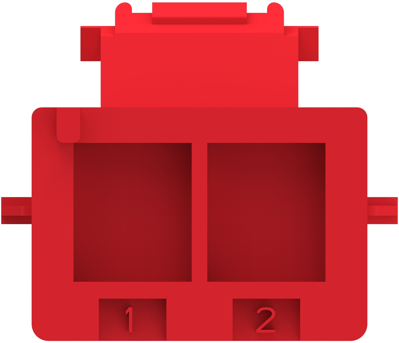

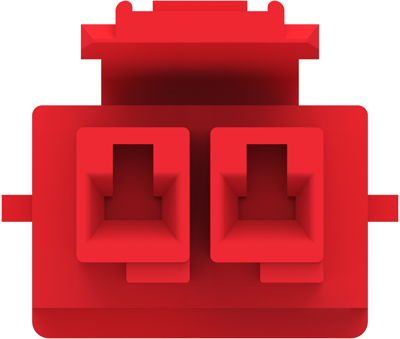

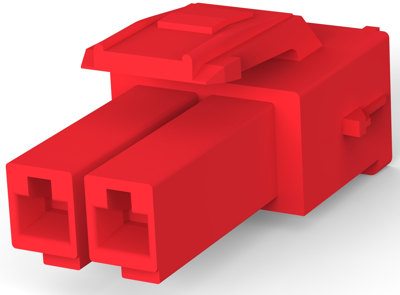

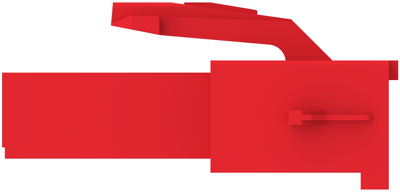

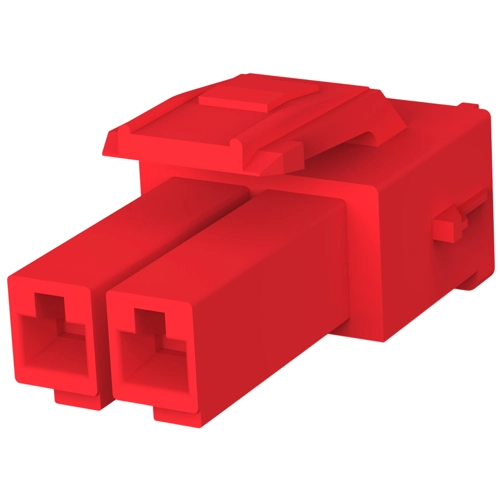

Plug housing, 2 pole, pitch 3.96 mm, straight, red, 177898-2

Order No.: 34P6179
EAN: 4099889910971
MPN:
177898-2
177898-2 AMP PCB Connection Systems Image 1
177898-2 AMP PCB Connection Systems Image 2
177898-2 AMP PCB Connection Systems Image 3
177898-2 AMP PCB Connection Systems Image 4
177898-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Available in 5 Days: 162,700 pcs.
Leadtime: 22 Weeks **
Total Price:
0.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.4165 €

PCB Connection System, 177898-2, AMP

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe rot
Kontaktart Buchse
Nennspannung 300 V
Orientierung gerade
Polzahl 2-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
