177903-1 | AMP

Plug housing, 9 pole, pitch 3.96 mm, straight, natural, 177903-1

Order No.: 34P6187
EAN: 4099889911053
MPN:
177903-1

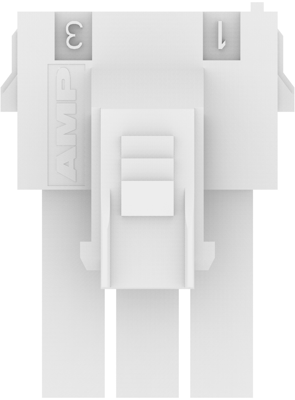

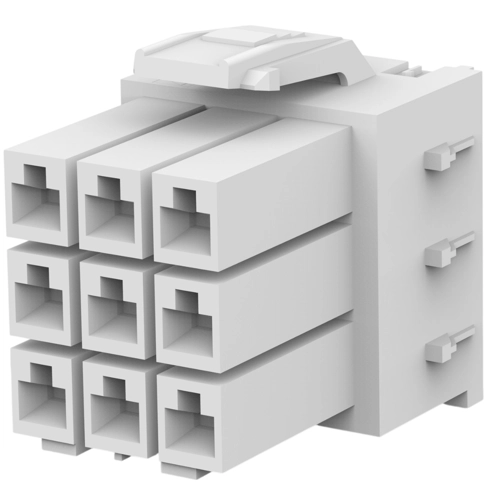

177903-1 AMP PCB Connection Systems Image 1

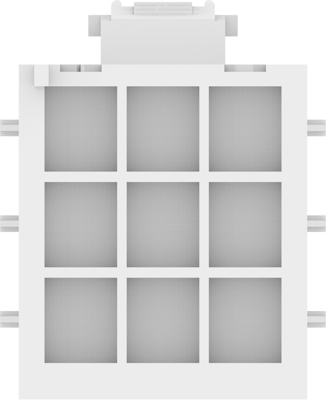

177903-1 AMP PCB Connection Systems Image 2

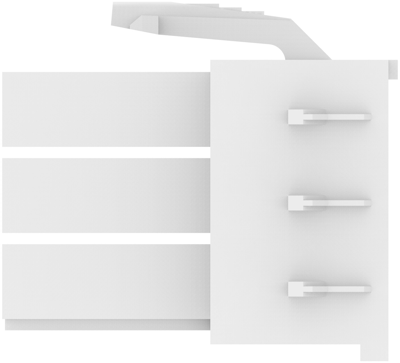

177903-1 AMP PCB Connection Systems Image 3

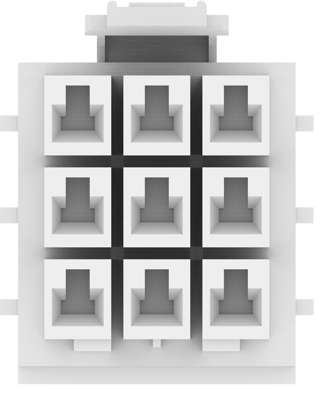

177903-1 AMP PCB Connection Systems Image 4

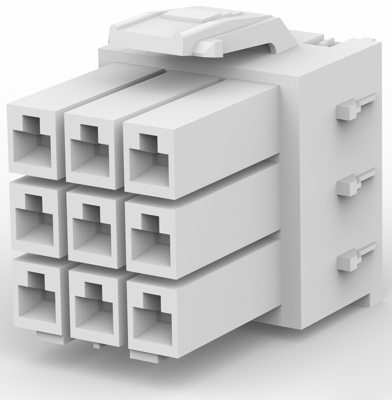

177903-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
742.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2400 pcs.
0.3094 €

PCB Connection System, 177903-1, AMP

Wire-to-Wire, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 9
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Connection crimp connection
Number of rows 3
Version plug housing
Additional parts unequipped
Colour natural
Contact type socket
Rated voltage 300 V
Orientation straight
Pin number 9 pole
Grid 3.96 mm
Type of locking Yes
Logistics
Country of origin IN
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
