177909-1 | AMP

Socket housing, 6 pole, pitch 3.96 mm, straight, natural, 177909-1

Order No.: 34P6175
EAN: 4099889910940
MPN:
177909-1

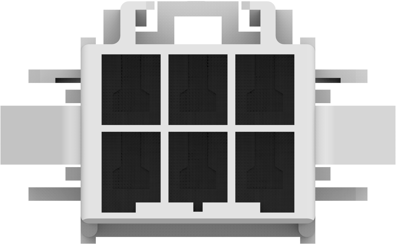

177909-1 AMP PCB Connection Systems Image 1

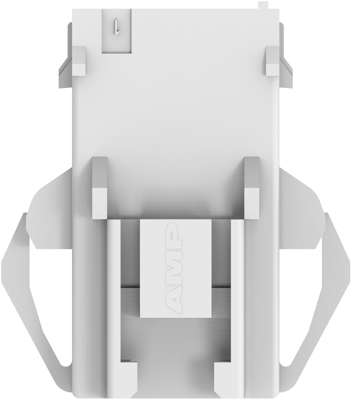

177909-1 AMP PCB Connection Systems Image 2

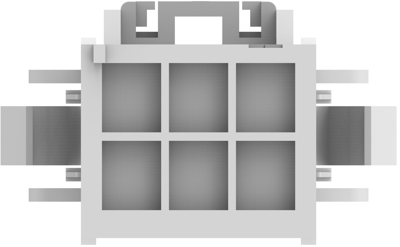

177909-1 AMP PCB Connection Systems Image 3

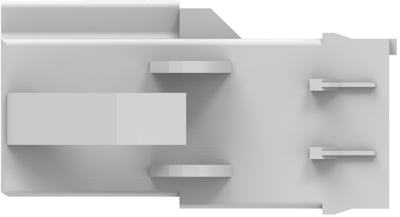

177909-1 AMP PCB Connection Systems Image 4

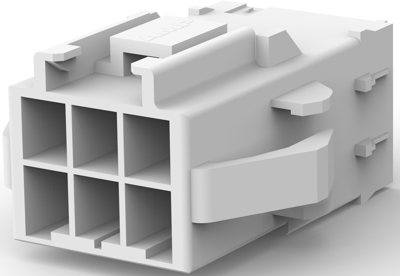

177909-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Available in 5 Days: 2,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.7735 €

PCB Connection System, 177909-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 6
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsengehäuse
Farbe natur
Kontaktart Tab
Nennspannung 300 V
Orientierung gerade
Polzahl 6-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
