177912-1 | AMP

Socket housing, 10 pole, pitch 3.96 mm, straight, natural, 177912-1

Order No.: 34P6162
EAN: 4099889910827
MPN:
177912-1

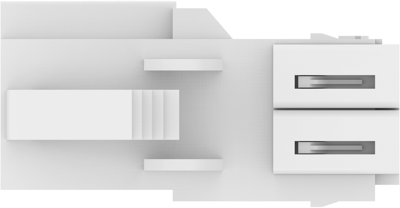

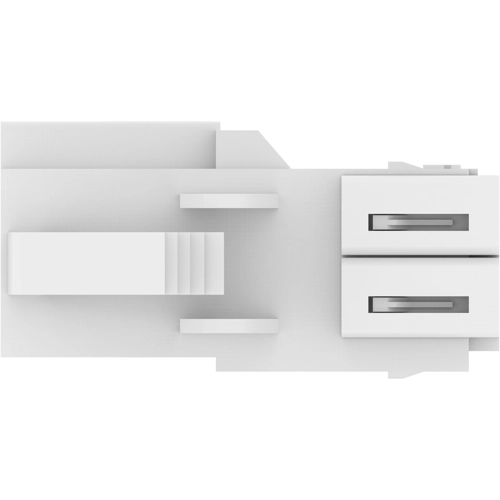

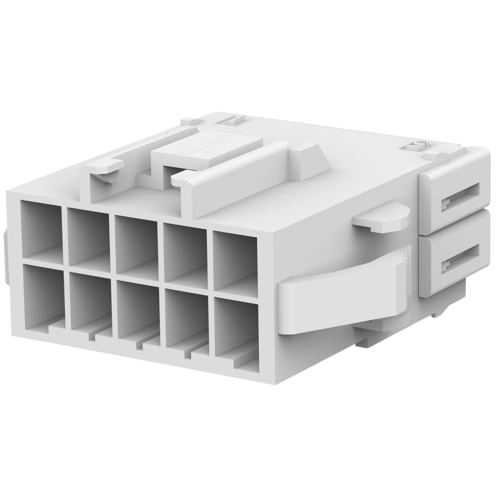

177912-1 AMP PCB Connection Systems Image 1

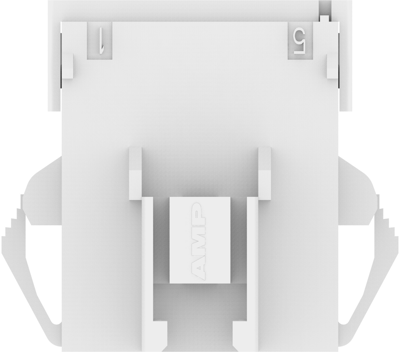

177912-1 AMP PCB Connection Systems Image 2

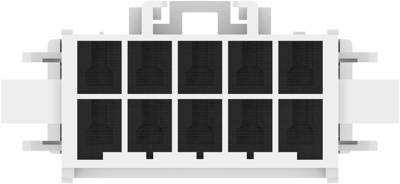

177912-1 AMP PCB Connection Systems Image 3

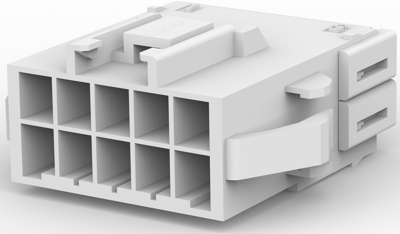

177912-1 AMP PCB Connection Systems Image 4

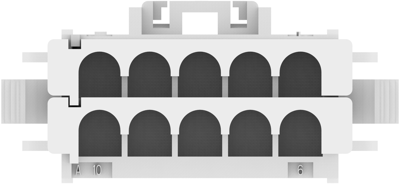

177912-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
3,941.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4800 pcs.
0.8211 €

PCB Connection System, 177912-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsengehäuse
Farbe natur
Kontaktart Tab
Nennspannung 300 V
Orientierung gerade
Polzahl 10-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
