178489-1 | AMP

Pin header, 6 pole, pitch 3.96 mm, straight, natural, 178489-1

Order No.: 34P6103
EAN: 4099889910384
MPN:
178489-1

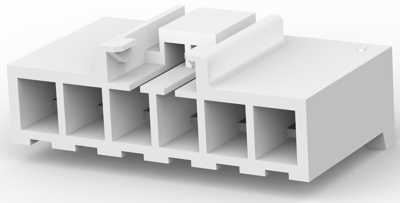

178489-1 AMP PCB Connection Systems Image 1

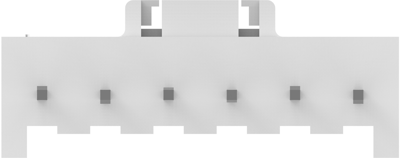

178489-1 AMP PCB Connection Systems Image 2

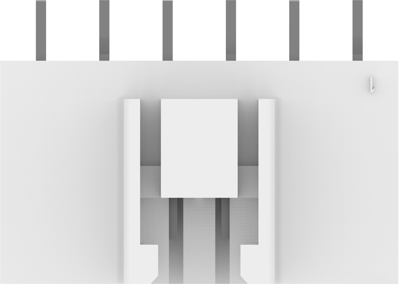

178489-1 AMP PCB Connection Systems Image 3

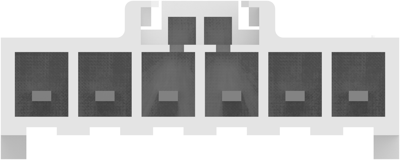

178489-1 AMP PCB Connection Systems Image 4

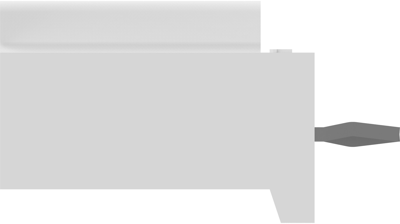

178489-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7017 € *
Available: 0 pcs.
Available in 5 Days: 2,303 pcs.
Leadtime: 22 Weeks **
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
10 pcs.
1.5589 €
50 pcs.
1.4042 €
100 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 178489-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6 GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 9 A
Orientierung gerade
Polzahl 6-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland GB
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
