178497-1 | AMP

Pin header, 4 pole, pitch 3.96 mm, angled, natural, 178497-1

Order No.: 34P6094
EAN: 4099889910308
MPN:
178497-1

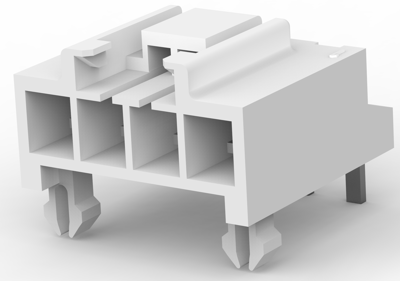

178497-1 AMP PCB Connection Systems Image 1

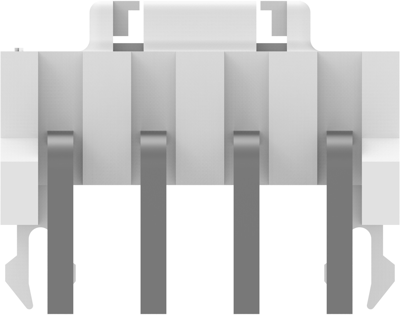

178497-1 AMP PCB Connection Systems Image 2

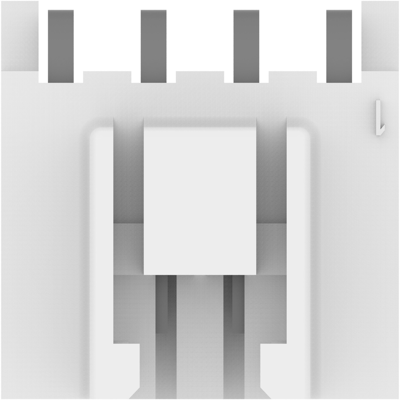

178497-1 AMP PCB Connection Systems Image 3

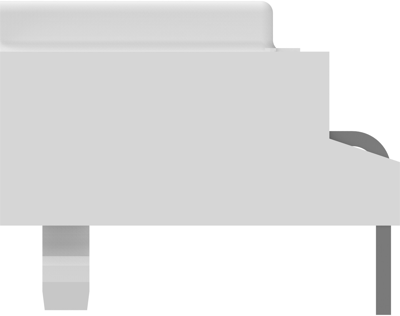

178497-1 AMP PCB Connection Systems Image 4

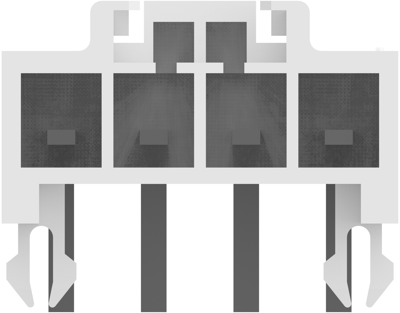

178497-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available: 0 pcs.
Leadtime: 36 Weeks **
Total Price:
2,208.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3200 pcs.
0.6902 €

PCB Connection System, 178497-1, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 4
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 10 A
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 10 A
Orientierung abgewinkelt
Polzahl 4-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland GB
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
