179228-6 | AMP

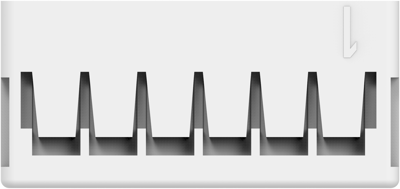

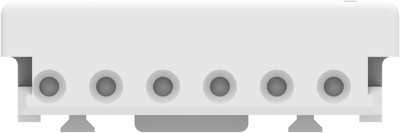

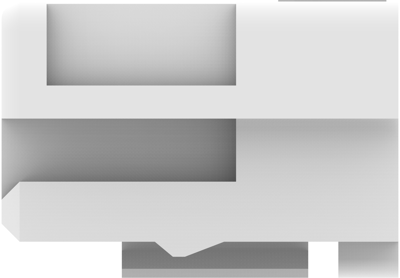

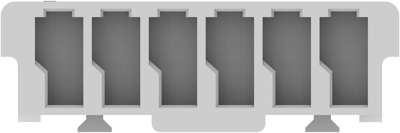

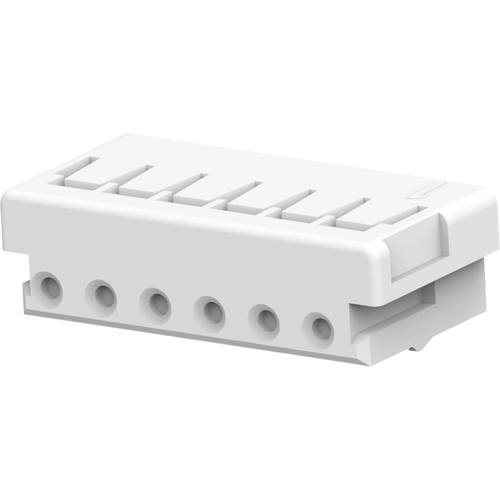

Socket housing, 6 pole, pitch 2 mm, straight, natural, 179228-6
Order No.: 36P6875
EAN: 4099889946567
MPN:
179228-6
Unit Price (€ / pc.)
0.1690 € *
Available: 0 pcs.
Available in 5 Days: 84,148 pcs.
Leadtime: 10 Weeks **
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
550 pcs.
0.1690 €
2600 pcs.
0.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 179228-6, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: natural
- Number of positions: 6
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 2 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | socket housing | |
| Colour | natural | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 4 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
