179228-7 | AMP

Socket housing, 7 pole, pitch 2 mm, straight, natural, 179228-7

Order No.: 36P6899
EAN: 4099889946642
MPN:
179228-7

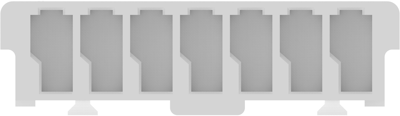

179228-7 AMP PCB Connection Systems Image 1

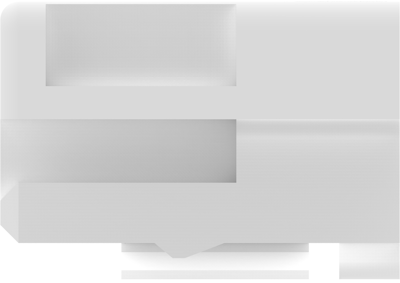

179228-7 AMP PCB Connection Systems Image 2

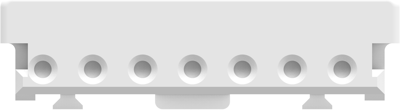

179228-7 AMP PCB Connection Systems Image 3

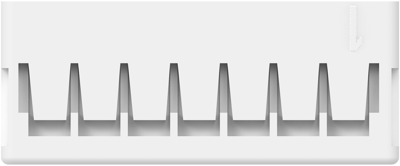

179228-7 AMP PCB Connection Systems Image 4

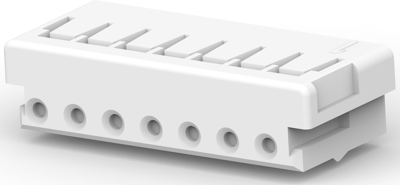

179228-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3570 € *
Available: 364 pcs.
Available in 5 Days: 10,508 pcs.
Leadtime: 9 Weeks **
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3570 €
10 pcs.
0.3213 €
50 pcs.
0.2773 €
100 pcs.
0.2440 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 179228-7, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 7 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 7
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Farbe natur
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 4 A
Orientierung gerade
Polzahl 7-polig
Rastermaß 2 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
