179849-1 | AMP

Pin header, 6 pole, pitch 6.5 mm, straight, natural, 179849-1

Order No.: 34P6124
EAN: 4099889910490
MPN:
179849-1

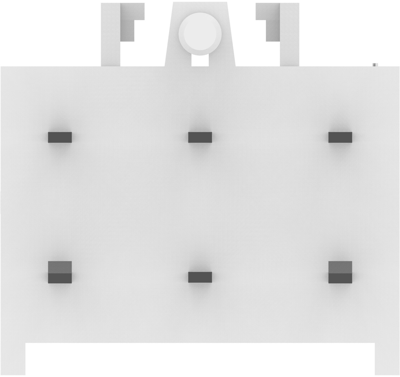

179849-1 AMP PCB Connection Systems Image 1

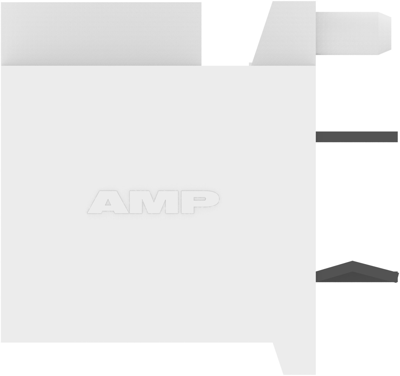

179849-1 AMP PCB Connection Systems Image 2

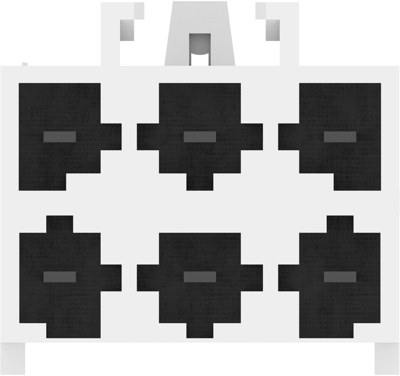

179849-1 AMP PCB Connection Systems Image 3

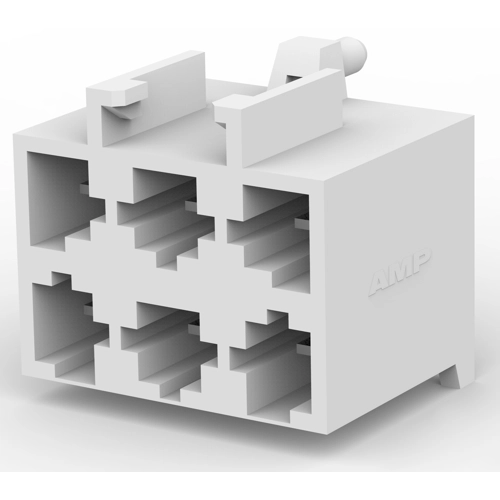

179849-1 AMP PCB Connection Systems Image 4

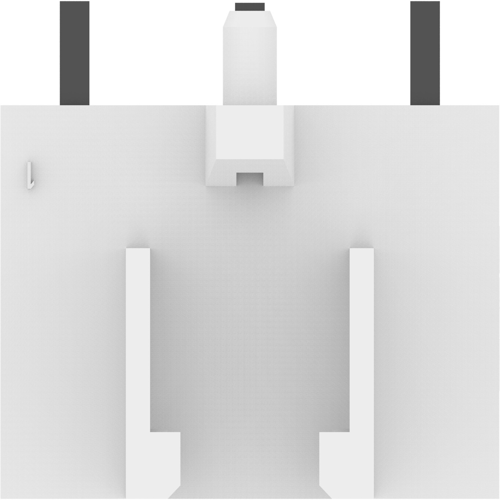

179849-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9159 € *
Available: 0 pcs.
Available in 5 Days: 1,680 pcs.
Leadtime: 23 Weeks **
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
10 pcs.
1.7374 €
50 pcs.
1.5708 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 179849-1, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6 GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 14 A
  • Centerline (Pitch): 6.5 mm
  • Row-to-Row Spacing: 6.5 mm [0.256 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 14 A
Orientierung gerade
Polzahl 6-polig
Rastermaß 6.5 mm
Verriegelung Ja
Logistics
Ursprungsland JP
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
