194269-1 | AMP

Pin header, 2 pole, straight, white, 194269-1

Order No.: 36P8780
EAN: 4099889948950
MPN:
194269-1

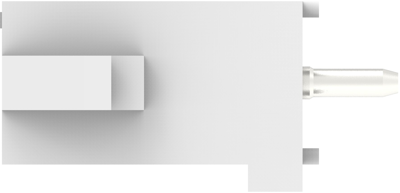

194269-1 AMP PCB Connection Systems Image 1

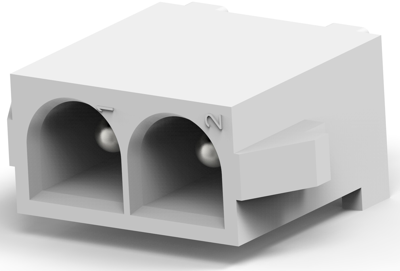

194269-1 AMP PCB Connection Systems Image 2

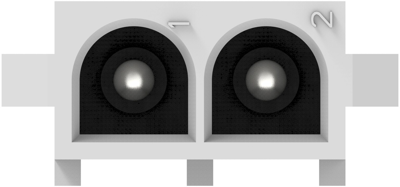

194269-1 AMP PCB Connection Systems Image 3

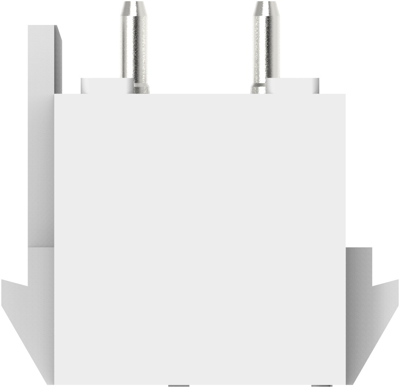

194269-1 AMP PCB Connection Systems Image 4

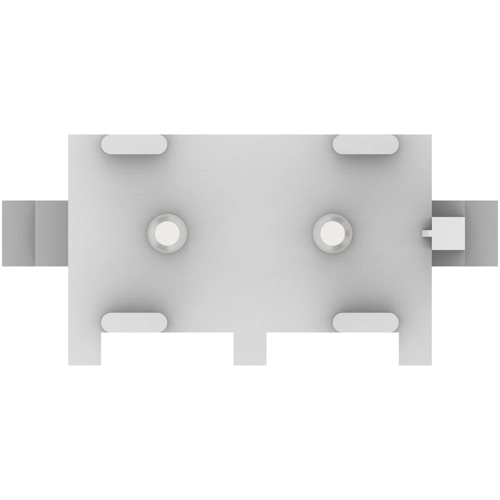

194269-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
9.0797 € *
Available: 0 pcs.
Available in 5 Days: 482 pcs.
Leadtime: 18 Weeks **
Total Price:
9.08 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0797 €
10 pcs.
8.3538 €
50 pcs.
7.5089 €
100 pcs.
6.7592 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 194269-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon GF
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 36 A
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Leiterplattenanschluss
Connection plating versilbert
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour weiß
Contact type Stift
contact surface versilbert
Rated voltage 150 V
Rated current 36 A
Orientation gerade
Pin number 2-polig
Type of locking Ja
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
