1969809-1 | AMP

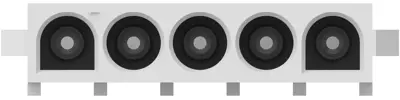

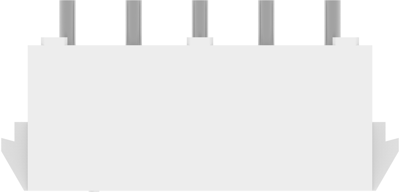

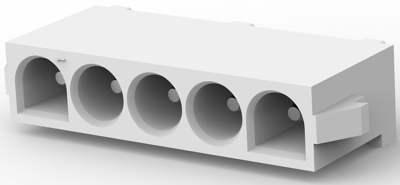

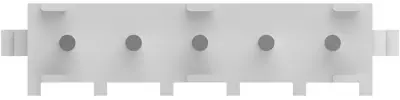

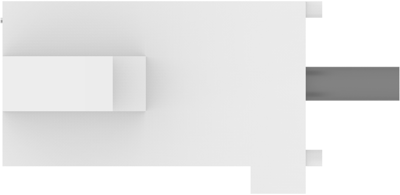

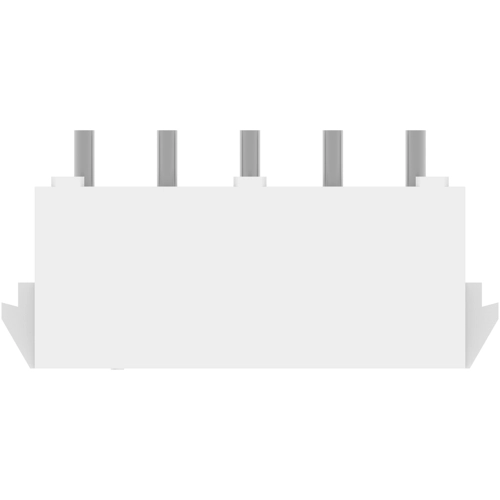

Pin header, 5 pole, pitch 6.35 mm, straight, natural, 1969809-1
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 1969809-1, TE Connectivity
Wire-to-Board, Printed Circuit Board, Vertical, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 5
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 6.35 mm
- Sealable: No
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | vorverzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Stift | |
| contact surface | vorverzinnt | |
| Rated voltage | 150 V | |
| Rated current | 12 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 6.35 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
