2-111446-2 | AMP

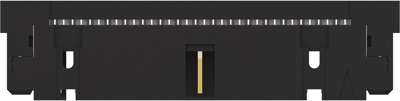

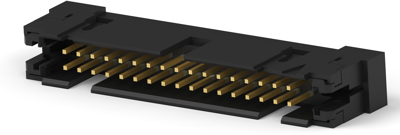

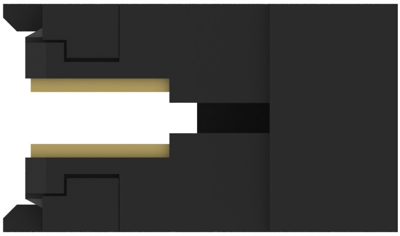

Pin header, 34 pole, pitch 2.54 mm, straight, black, 2-111446-2
Unit Price (€ / pc.)
11.7215 € *
Available: 29 pcs.
Leadtime: On Request **
Total Price:
11.72 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7215 €
10 pcs.
10.3173 €
50 pcs.
9.5914 €
150 pcs.
9.1868 €
500 pcs.
8.7227 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connectors, insulation displacement technology
Consisting of plug subpart with male contacts and the upper part with integrated strain relief. Without mounting flange; Housing: thermoplastic polyester, black, compliant with UL 94 V-0. Contact material: tin bronze, in the contact area gold-plated on nickel primer, in the insulation displacement area tinned over nickel. Grid: 2.54 x 2.54 mm.
number of poles: 34-pole
dimensions: A 55.68, B 57.71 mm
type: 2-111446-2
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 34 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
