2-111506-4 | AMP

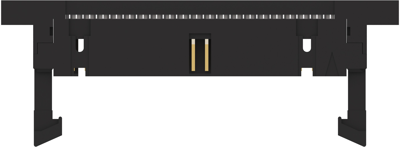

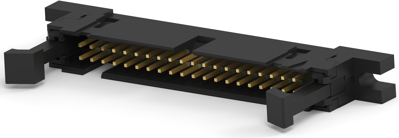

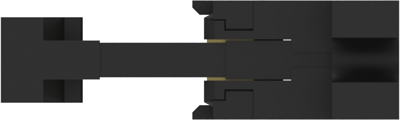

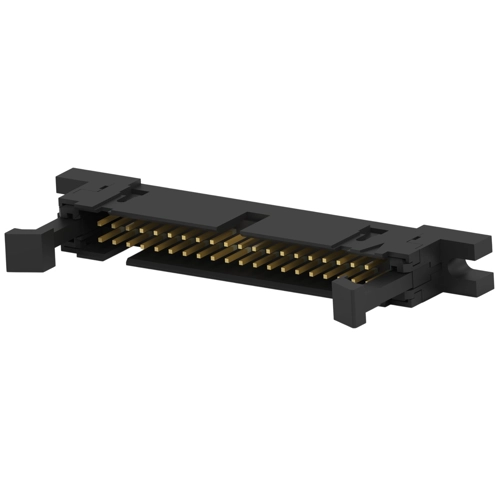

Pin header, 40 pole, pitch 2.54 mm, straight, black, 2-111506-4
Unit Price (€ / pc.)
12.4831 € *
Available: 0 pcs.
Available in 5 Days: 57 pcs.
Leadtime: 12 Weeks **
PCB Connection System, 2-111506-4, AMP
Wire-to-Wire, Wire & Cable, 40 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 40
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Orientation | gerade | |
| Pin number | 40-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
