2-111626-7 | AMP

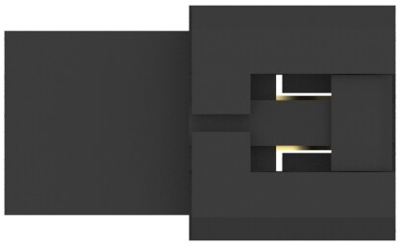

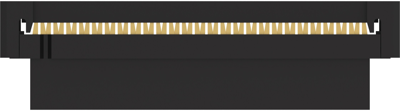

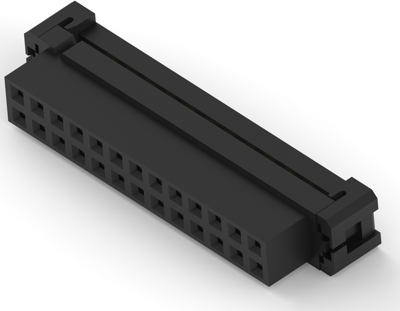

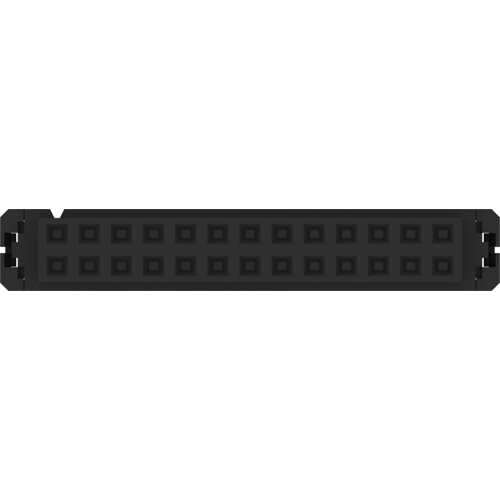

Socket header, 26 pole, pitch 2 mm, straight, black, 2-111626-7
Unit Price (€ / pc.)
5.6525 € *
Available: 0 pcs.
Available in 5 Days: 79 pcs.
Leadtime: 11 Weeks **
Total Price:
5.65 € *
Price list
Quantity
Price per unit*
20 pcs.
5.6525 €
80 pcs.
5.3431 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2-111626-7, AMP
Wire-to-Board, Wire & Cable, 26 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester
- Housing Color: black
- Number of positions: 26
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-lead | |
| Rated voltage | 150 V | |
| Rated current | 500 mA | |
| Orientation | straight | |
| Pin number | 26 pole | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
