2-1445057-2 | AMP

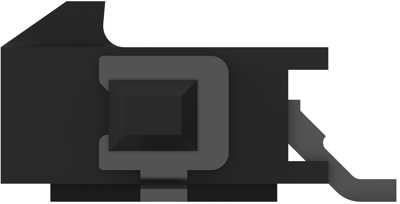

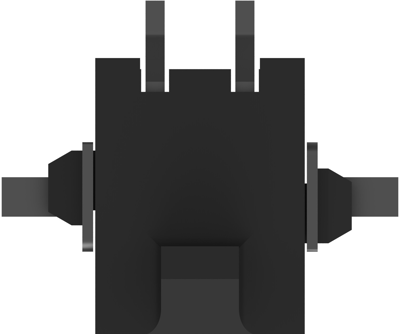

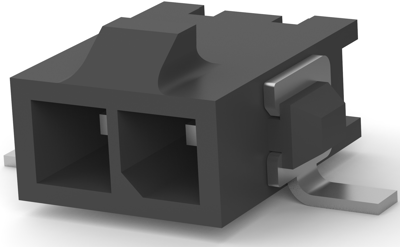

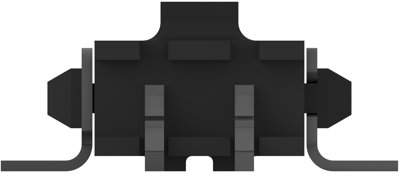

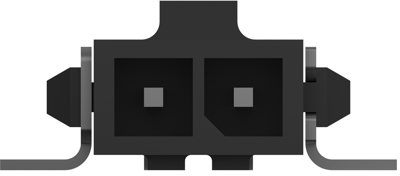

Pin header, 2 pole, pitch 3 mm, angled, black, 2-1445057-2
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.
3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.
SMD sockets, single-row, angled, type 2-1445057.
With additional mounting terminals on the sides; Housing: Nylon, high temperature-resistant, flame retardant to UL 94 V-0. Contacts: tinned brass, mounting terminals: phosphor bronze, tinned.
Technical attributes (type, number of poles, length): 2-1445057-2, 2-pole, L 10.0 mm
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 2-polig | |
| Rastermaß | 3 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
