2-1445093-7 | AMP

Pin header, 7 pole, pitch 3 mm, straight, black, 2-1445093-7

Order No.: 71P4920
EAN: 4099891725204
MPN:
2-1445093-7

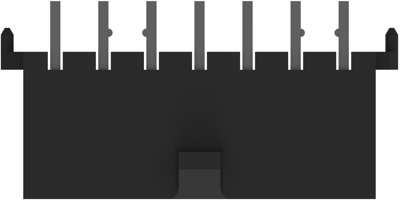

2-1445093-7 AMP PCB Connection Systems Image 1

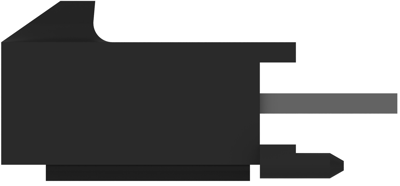

2-1445093-7 AMP PCB Connection Systems Image 2

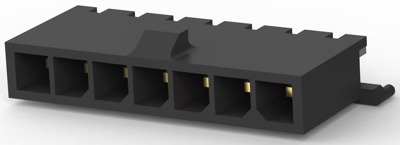

2-1445093-7 AMP PCB Connection Systems Image 3

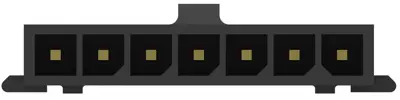

2-1445093-7 AMP PCB Connection Systems Image 4

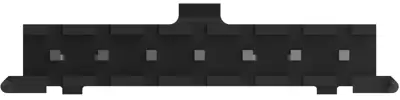

2-1445093-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available: 0 pcs.
Available in 5 Days: 1,480 pcs.
Leadtime: 21 Weeks **
Total Price:
273.11 € *
Price list
Quantity
Price per unit*
150 pcs.
1.8207 €
300 pcs.
1.7850 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power connector, 2-1445093-7, AMP

The 2-1445093-7 offers wire-to-wire and wire-to-board connections with contacts on a 3 mm centerline and current ratings up to 5 Amps max. This product includes the appliance, instrumentation, industrial machinery, home equipment, and security system industries.

Features

  • Dual beam receptacle contact design for improved reliabilit

Applications

  • Household appliances
  • Lighting
  • Factory automation
  • Data storage
  • Garage door opener
  • Security system
Technical specifications
Anschluss Lötanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 250 V
Nennstrom 5 A
Orientierung gerade
Polzahl 7-polig
Rastermaß 3 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
