2-215297-5 | AMP

Socket header, 25 pole, pitch 2.54 mm, straight, green, 2-215297-5

Order No.: 59F5325
EAN: 4099891006204
MPN:
2-215297-5
2-0215297-5
Series: AMPMODU
AMP
2-215297-5 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
3.2011 € *
Available: 77 pcs.
Leadtime: On Request **
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.8203 €
100 pcs.
2.4871 €
250 pcs.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale

Straight socket headers, series HV 100, type TE Connectivity/AMP ..-0215.

With 2.54 mm grid. Single-row or dual-row contact arrangement. With initial point of contact and closed base. Stackable without grid loss. Cranked solder ends for fastening in the PCB perforation; Housing: polyester GV, green, self-extinguishing to UL 94 V-0. Contact material: CuSn. Contact finish: gold-plated on nickel primer, 2.5 µ tin in the solder area.

Single-row, type ..-0215.

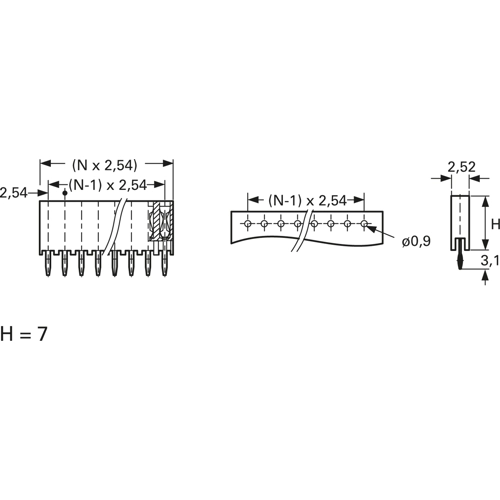

Technical attributes (type, number of poles, overall height (H)): 2-0215297-5, 25-pole, H 7.0 mm

Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour green
Contact type socket
contact surface gold-plated
Rated current 3 A
Orientation straight
Pin number 25 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
