2-2178712-0 | AMP

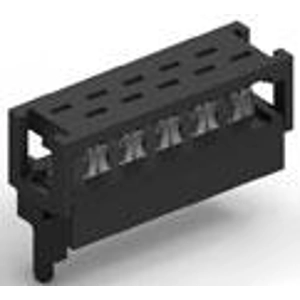

Pin header, 20 pole, pitch 1.27 mm, straight, black, 2-2178712-0
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 5 Days: 75,000 pcs.
Leadtime: 16 Weeks **
Male connector, 2-2178712-0, AMP
Cable-to-Board, Wire & Cable, Vertical, 20 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: PBT GF
- Housing Color: black
- Orientation: straight
- Number of positions: 20
- Operating Temperature Range: -30 – 85 °C [-22 – 185 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 2 mm [0.059 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 1.3 A | |
| Orientation | straight | |
| Pin number | 20 pole | |
| Grid | 1.27 mm |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
