2-292175-4 | AMP

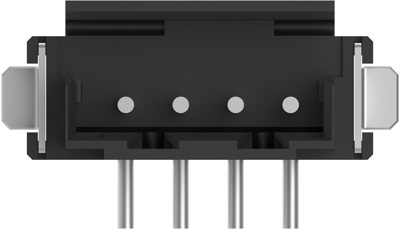

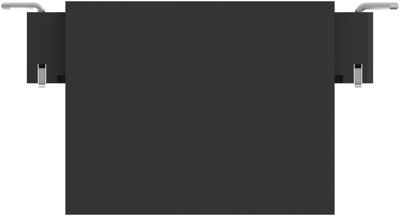

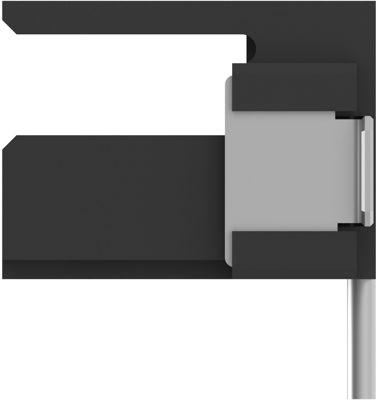

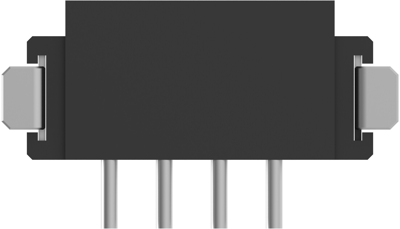

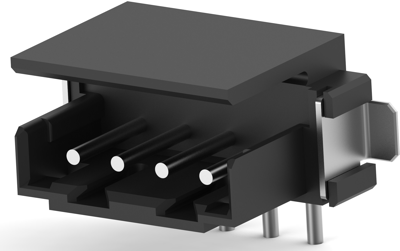

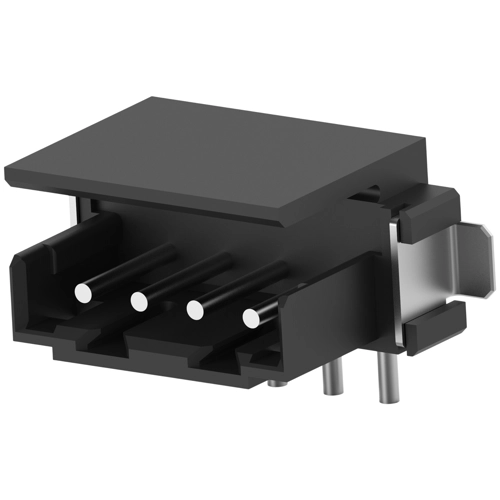

Pin header, 4 pole, pitch 2 mm, straight, black, 2-292175-4
Order No.: 36P6942
EAN: 4099889946833
MPN:
2-292175-4
Unit Price (€ / pc.)
1.3923 € *
Available: 0 pcs.
Available in 5 Days: 1,400 pcs.
Leadtime: 10 Weeks **
Total Price:
974.61 € *
Price list
Quantity
Price per unit*
700 pcs.
1.3923 €
1400 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2-292175-4, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: 6T PA(GF)
- Housing Color: black
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 4-polig | |
| Grid | 2 mm | |
| Connection | SMD | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | vorverzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 125 V | |
| Rated current | 4 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | schwarz |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
