2-644488-4 | AMP

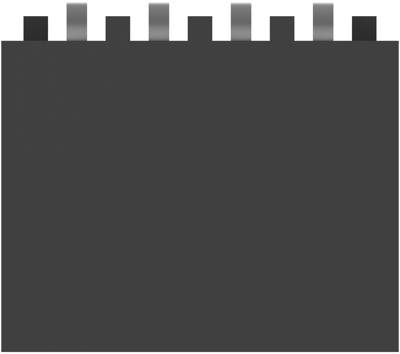

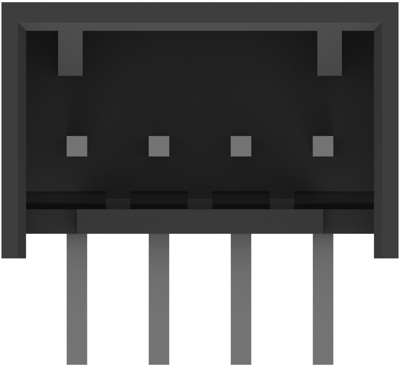

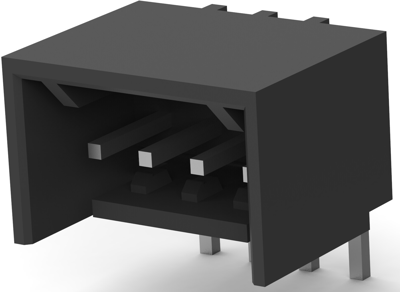

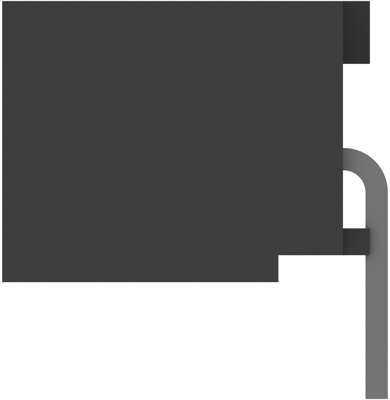

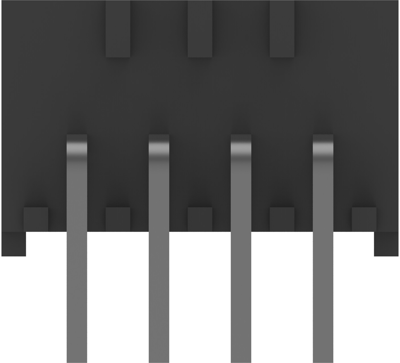

Pin header, 4 pole, pitch 2.54 mm, angled, black, 2-644488-4
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Available in 5 Days: 4,128 pcs.
Leadtime: 21 Weeks **
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.7021 €
50 pcs.
0.6307 €
100 pcs.
0.5712 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2-644488-4, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: angled
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 4-polig | |
| Grid | 2.54 mm | |
| Connection | Lötstift | |
| Orientation | abgewinkelt | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | schwarz |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
