2-644803-6 | AMP

Pin header, 6 pole, pitch 2.54 mm, angled, black, 2-644803-6

Order No.: 35P1748
EAN: 4099889927696
MPN:
2-644803-6
Series: MTA-100

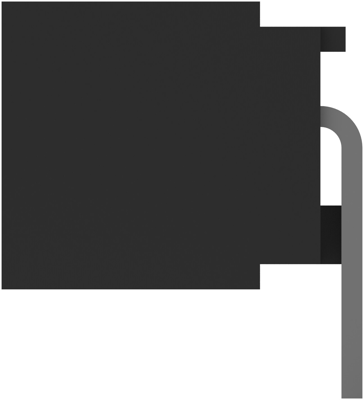

2-644803-6 AMP PCB Connection Systems Image 1

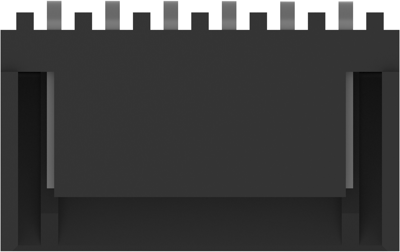

2-644803-6 AMP PCB Connection Systems Image 2

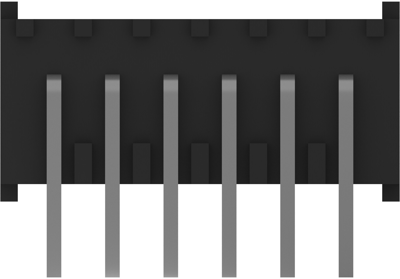

2-644803-6 AMP PCB Connection Systems Image 3

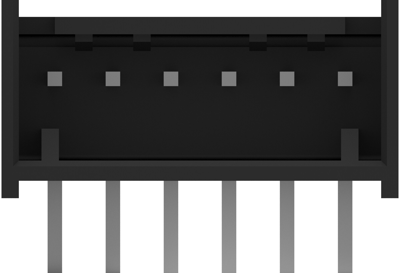

2-644803-6 AMP PCB Connection Systems Image 4

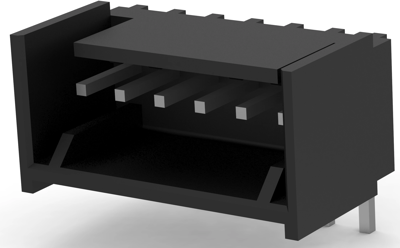

2-644803-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Available in 5 Days: 1,500 pcs.
Leadtime: 21 Weeks **
Total Price:
1.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7969 €

PCB Connection System, 2-644803-6, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 5 A
Orientierung abgewinkelt
Polzahl 6-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
