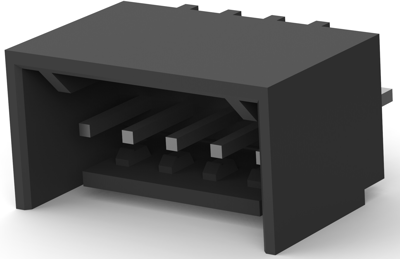

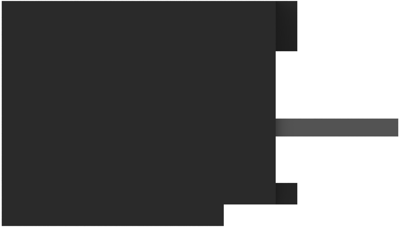

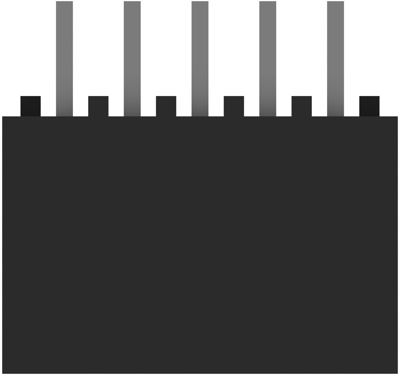

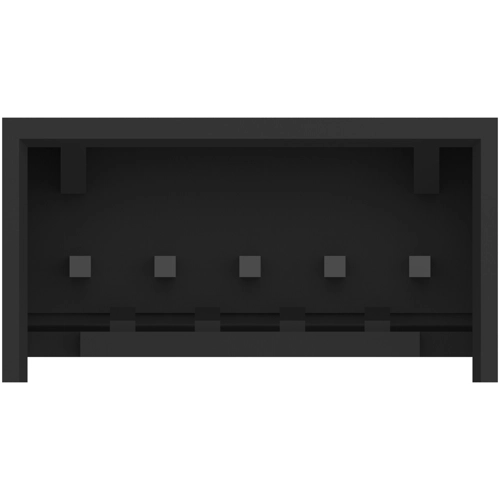

2-644861-5 | AMP
Pin header, 5 pole, pitch 2.54 mm, straight, black, 2-644861-5
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 2-644861-5, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 5
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Ausführung | Stiftleiste | |
| Kontaktart | Stift | |
| Polzahl | 5-polig | |
| Rastermaß | 2.54 mm | |
| Anschluss | Lötstift | |
| Orientierung | gerade | |
| Verriegelung | Ja | |
| Kontaktoberfläche | verzinnt | |
| Anschlussoberfläche | verzinnt | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Bestückung | bestückt | |
| Anzahl der Reihen | 1 | |
| Brechbar | No | |
| Farbe | schwarz |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
