2-647127-7 | AMP

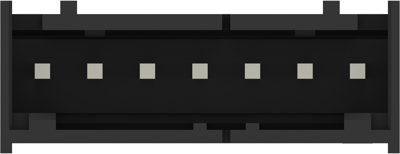

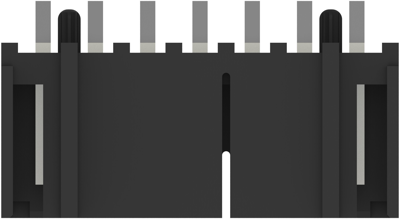

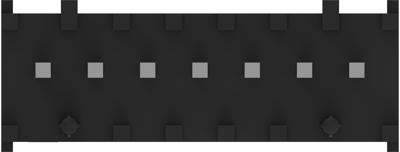

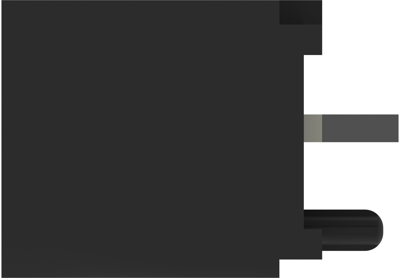

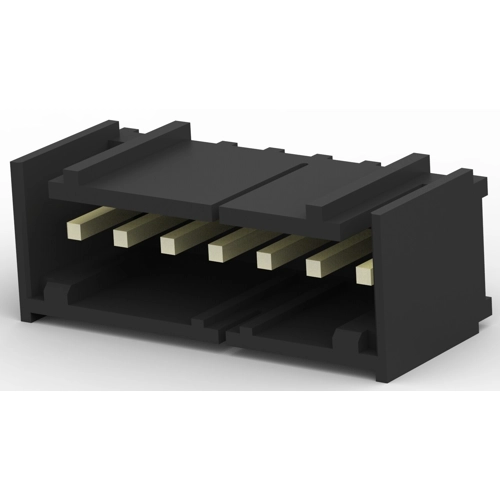

Pin header, 7 pole, pitch 3.96 mm, straight, black, 2-647127-7
Order No.: 35P1065
EAN: 4099889922011
MPN:
2-647127-7
Unit Price (€ / pc.)
2.3205 € *
Available: 0 pcs.
Available in 5 Days: 1,917 pcs.
Leadtime: 29 Weeks **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
40 pcs.
2.3205 €
200 pcs.
2.1896 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2-647127-7, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 7 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 7
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 7 A | |
| Orientation | straight | |
| Pin number | 7 pole | |
| Grid | 3.96 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
