2-87631-8 | AMP

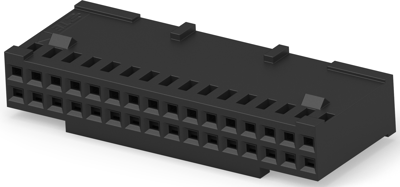

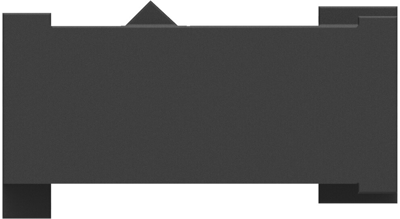

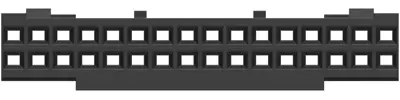

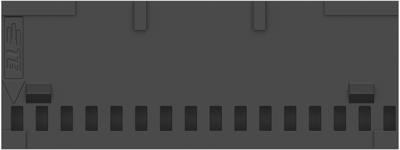

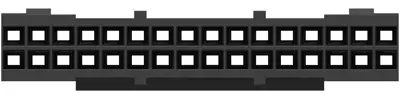

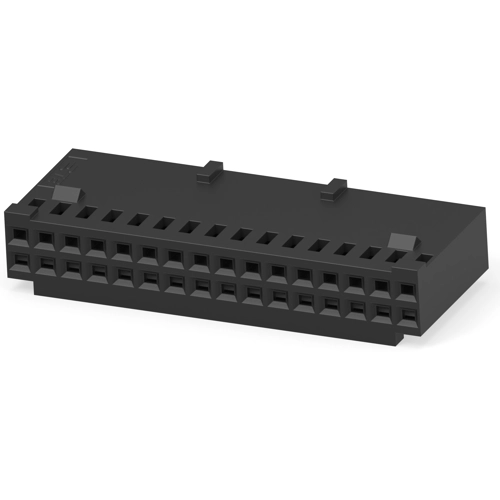

Socket housing, 32 pole, pitch 2.54 mm, straight, black, 2-87631-8

Order No.: 37P6435
EAN: 4099889961881
MPN:
2-87631-8
Series: AMPMODU
2-87631-8 AMP PCB Connection Systems Image 1
2-87631-8 AMP PCB Connection Systems Image 2
2-87631-8 AMP PCB Connection Systems Image 3
2-87631-8 AMP PCB Connection Systems Image 4
2-87631-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7608 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
4,417.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1600 pcs.
2.7608 €

PCB Connection System, 2-87631-8, AMP

Wire-to-Board, Wire & Cable, 32 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Number of positions: 32
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe schwarz
Kontaktart Buchse
Nennspannung 250 V
Nennstrom 3 A
Orientierung gerade
Polzahl 32-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland CH
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
