207018-1 | AMP

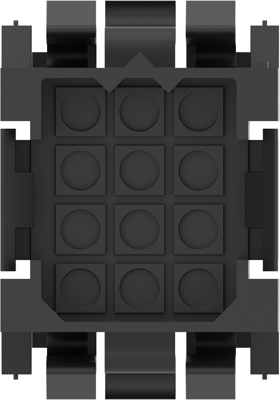

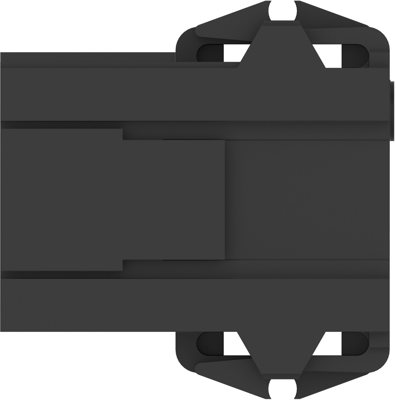

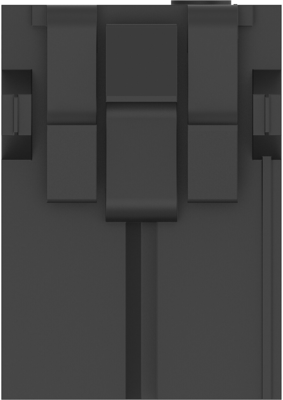

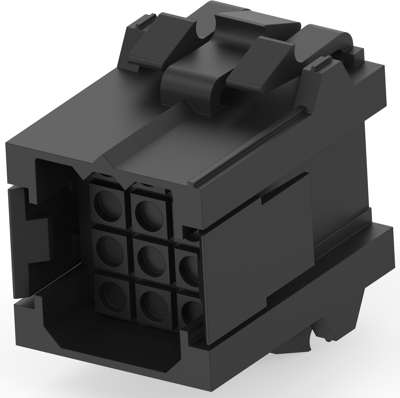

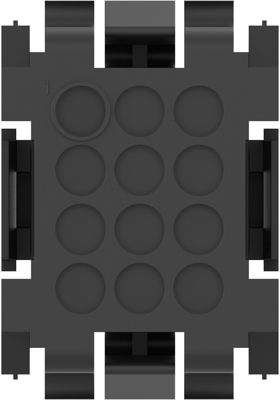

Socket housing, 12 pole, pitch 5 mm, straight, black, 207018-1
Unit Price (€ / pc.)
9.8175 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
9.0321 €
50 pcs.
8.1277 €
100 pcs.
7.3185 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 207018-1, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Rectangular Connector Housings, 12 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: red
- Number of positions: 12
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 14 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 4 | |
| Version | Buchsengehäuse | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| Rated voltage | 150 V | |
| Rated current | 14 A | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Grid | 5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
