207019-1 | AMP

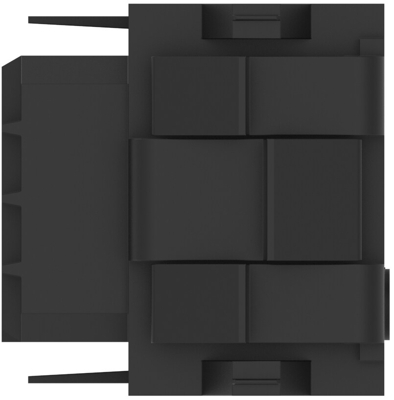

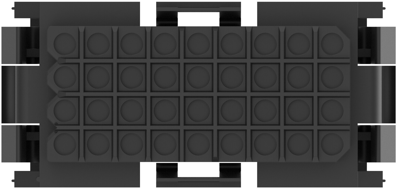

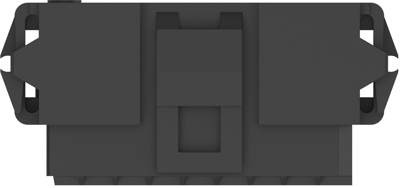

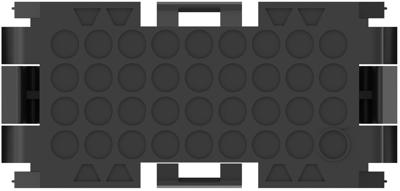

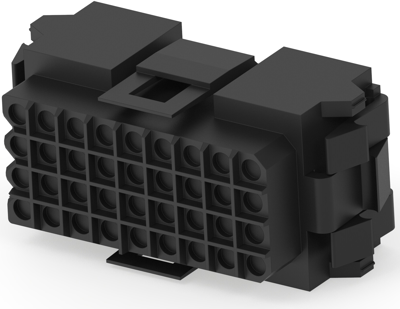

Plug housing, 36 pole, pitch 5 mm, straight, red, 207019-1
Unit Price (€ / pc.)
9.1035 € *
Available: 0 pcs.
Available in 5 Days: 182 pcs.
Leadtime: 22 Weeks **
Total Price:
9.10 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1035 €
10 pcs.
8.3657 €
50 pcs.
7.5327 €
100 pcs.
6.7830 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 207019-1, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Printed Circuit Board, Wire & Cable, 36 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: red
- Number of positions: 36
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 14 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 9 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Colour | rot | |
| Contact type | Buchse | |
| Rated voltage | 150 V | |
| Rated current | 14 A | |
| Orientation | gerade | |
| Pin number | 36-polig | |
| Grid | 5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
