215307-8 | AMP
Socket header, 8 pole, pitch 2.54 mm, straight, black, 215307-8
Unit Price (€ / pc.)
2.0468 € *
Available: 695 pcs.
Leadtime: 3 Weeks **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.9040 €
50 pcs.
1.7493 €
100 pcs.
1.6065 €
1000 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale
Straight socket headers, series HV 100, type TE Connectivity/AMP ..-0215.
With 2.54 mm grid. Single-row or dual-row contact arrangement. With initial point of contact and closed base. Stackable without grid loss. Cranked solder ends for fastening in the PCB perforation; Housing: polyester GV, black, self-extinguishing to UL 94 V-0. Contact material: CuSn. Contact finish: gold-plated on nickel primer, 2.5 µ tin in the solder area.
Dual-row, type ..-0215.

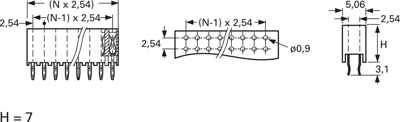

Technical attributes (type, number of poles, overall height (H)): 0-0215307-8, 2 x 8-pole, H 7.0 mm
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
