215460-8 | AMP

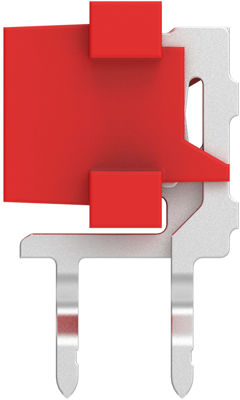

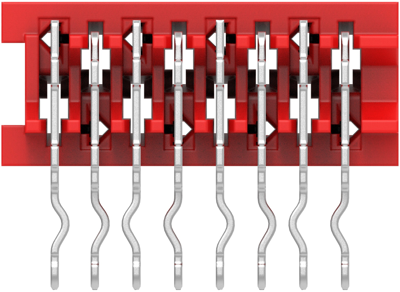

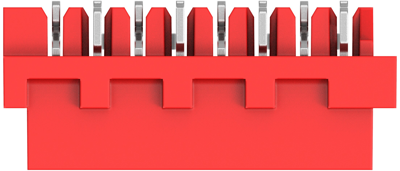

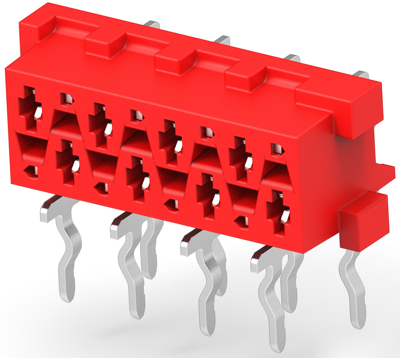

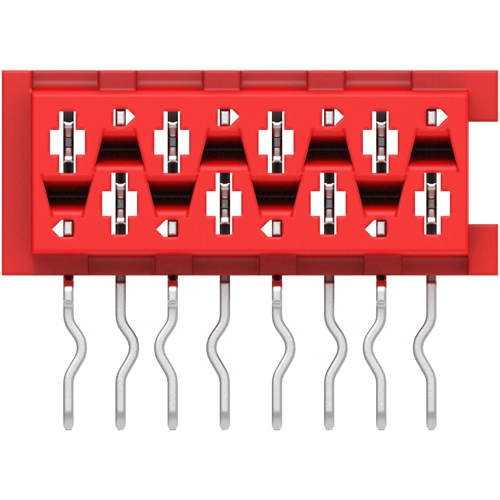

Socket header, 8 pole, pitch 1.27 mm, angled, red, 215460-8
Unit Price (€ / pc.)
0.4998 € *
Available: 0 pcs.
Available in 5 Days: 52,500 pcs.
Leadtime: 24 Weeks **
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
PCB female connectors, angled
For PCB mounting.
Technical attributes (type, number of poles): 0-0215460-8, 8-pole
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | red | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Grid | 1.27 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
