216604-7 | AMP

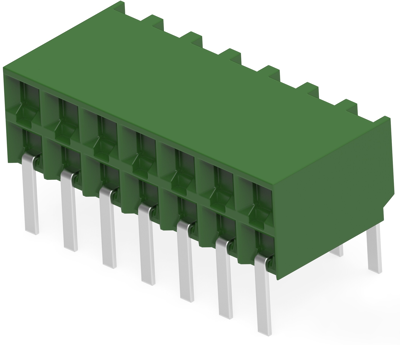

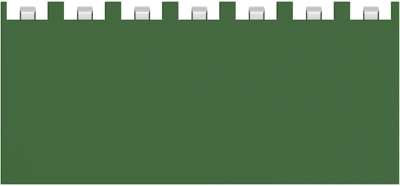

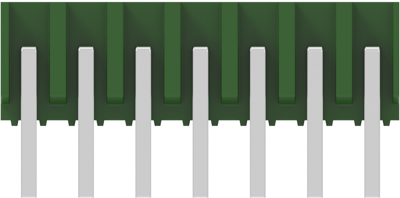

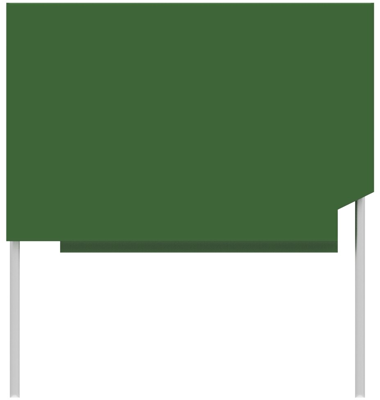

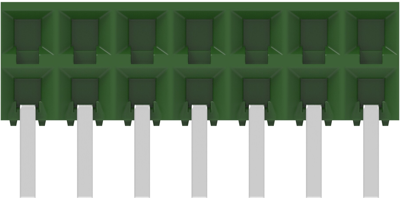

Socket header, 7 pole, pitch 2.54 mm, angled, green, 216604-7
Unit Price (€ / pc.)
2.4395 € *
Available: 0 pcs.
Leadtime: 49 Weeks **
Socket headers, angled, type TE Connectivity/AMP Modu II.
With 2.54 mm grid. Single-row, stackable without grid loss; Contacts: CuSn. Contact finish: in the plug-in area gold-plated on nickel primer, in the solder area tinned on nickel primer. Housing: polyester, green, self-extinguishing to UL 94 V-0. Insertion direction: sideways.
Dual-row, type ..-0216.
Type: 0-0216604-7, 2 x 7-pole
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | grün | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Orientation | abgewinkelt | |
| Pin number | 7-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
