280358 | AMP

Socket header, 2 pole, pitch 2.54 mm, straight, black, 280358

Order No.: 37P6380
EAN: 4099889961492
MPN:
280358
Series: AMPMODU

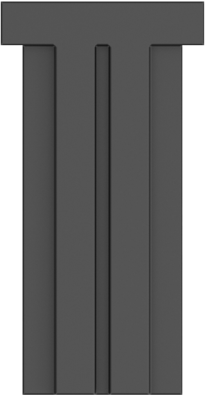

280358 AMP PCB Connection Systems Image 1

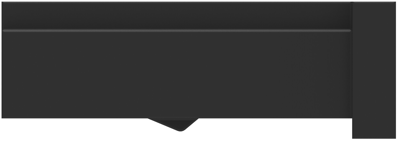

280358 AMP PCB Connection Systems Image 2

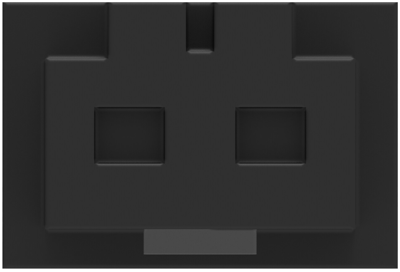

280358 AMP PCB Connection Systems Image 3

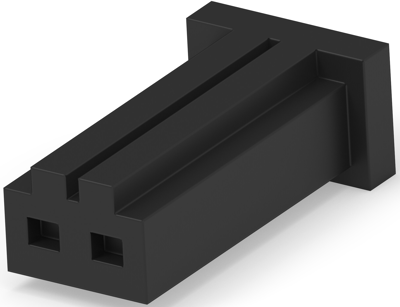

280358 AMP PCB Connection Systems Image 4

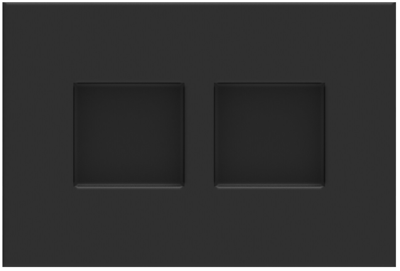

280358 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2190 € *
Available: 2,702 pcs.
Available in 5 Days: 15,581 pcs.
Leadtime: 23 Weeks **
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2190 €
10 pcs.
0.1928 €
50 pcs.
0.1642 €
100 pcs.
0.1345 €
1000 pcs.
0.1214 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 280358, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 80 °C [-40 – 176 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Contact Layout: Inline
Technical specifications
Connection Crimpanschluss
Number of rows 1
Version Buchsenleiste
Additional parts unbestückt
Colour schwarz
Contact type Buchse
Rated current 3 A
Orientation gerade
Pin number 2-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin KR
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
