280370-2 | AMP

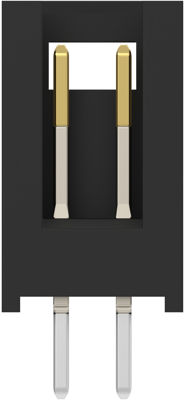

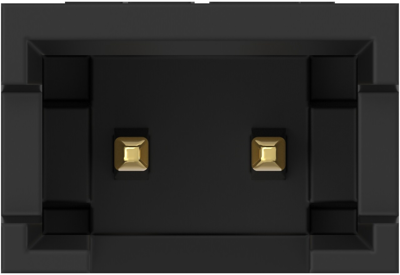

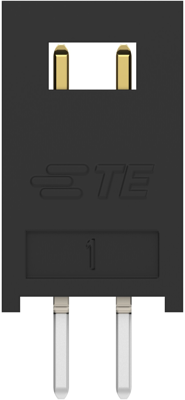

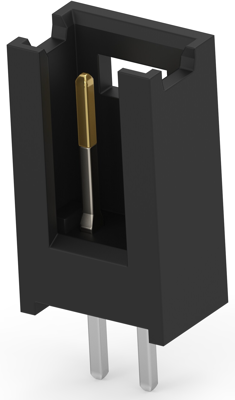

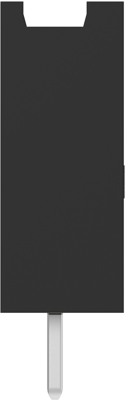

Pin header, 2 pole, pitch 2.54 mm, straight, black, 280370-2
Unit Price (€ / pc.)
0.2904 € *
Available: 0 pcs.
Available in 5 Days: 9,619 pcs.
Leadtime: 27 Weeks **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
350 pcs.
0.2904 €
1600 pcs.
0.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 280370-2, AMP
Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 40 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
